"3072RT / 3772RT / 3772RT HD" Service & Parts Manual - ANSI Specifications March 2008
Page 3-15

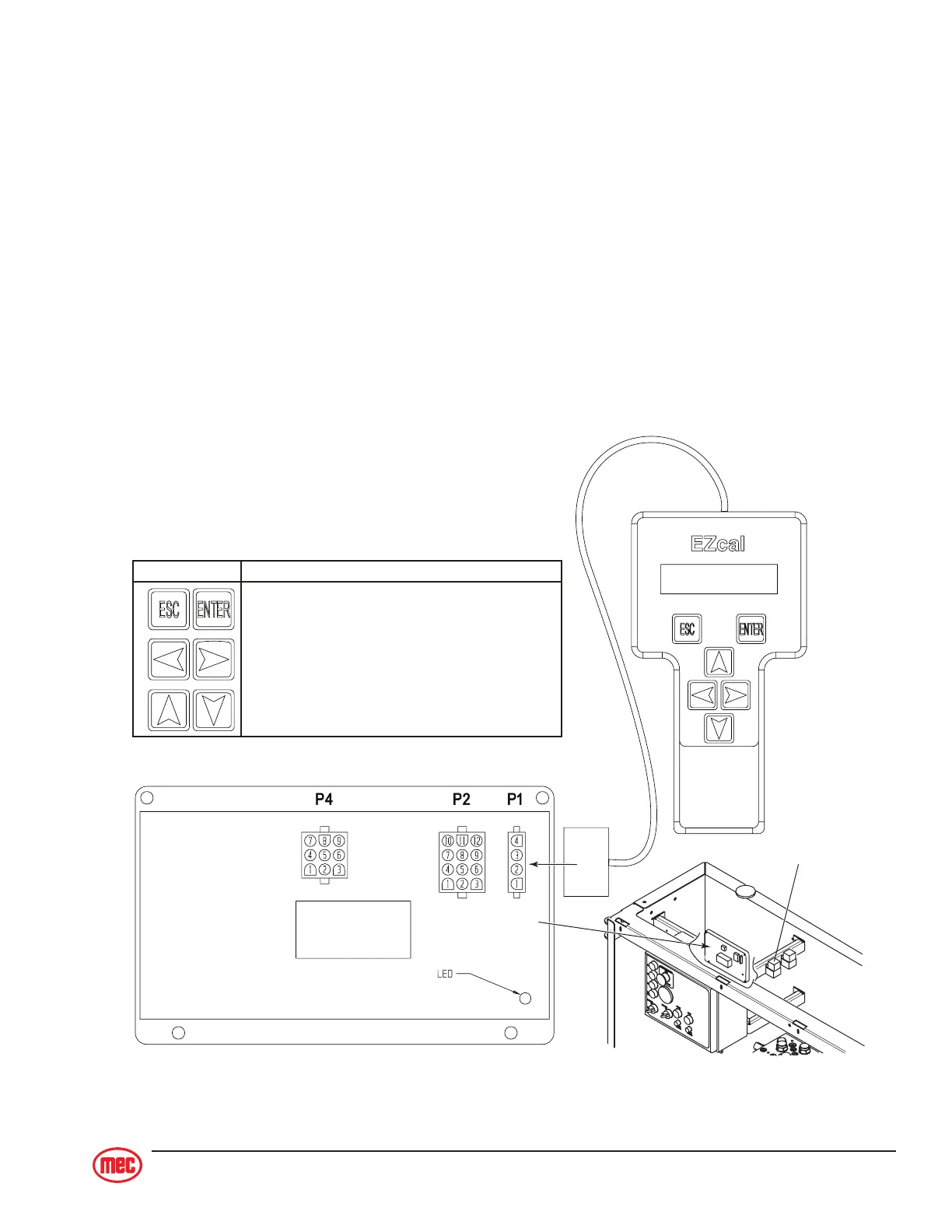

SYMBOL KEY FUNCTIONS
ESC/ENTER BUTTONS
To move back and forth between menu and sub-menu
LEFT/RIGHT BUTTONS
Select menus and setting to be adjusted
UP/DOWN BUTTONS
Adjust setting values
GP106 Outrigger Control Module
Calibrator
MEC P/N 90888
Connects
to P1
Outriggers Relay
Outrigger Calibration
Before attempting the calibration procedure, move the machine to an area that is level as mea-
sured by a spirit level or other leveling device. An EZ-Cal hand-held device (MEC part # 90888) is
required to carry out all calibration procedures on the GP106 Outrigger Control Module.
