Mec 3072RT - Optional Outriggers System

March 2008 "3072RT / 3772RT / 3772RT HD" Service & Parts Manual - ANSI Specifications
Page 1-20
PORT ORS
OUTRIGGER
MANIFOLD
PORT ORLS PORT ORR
OUTRIGGER RETRACT
OUTRIGGER EXTEND
BACK
BACK
RIGHT
RIGHT SIDE
FRONT
LEFT
LEFT SIDE
Outrigger
Stowed
Switch
(UP)
Retract Coil
Extend Coil
Outrigger
Retract
Valve
Outrigger
Extend
Valve
Outrigger
Pressure
Switch
(DOWN)

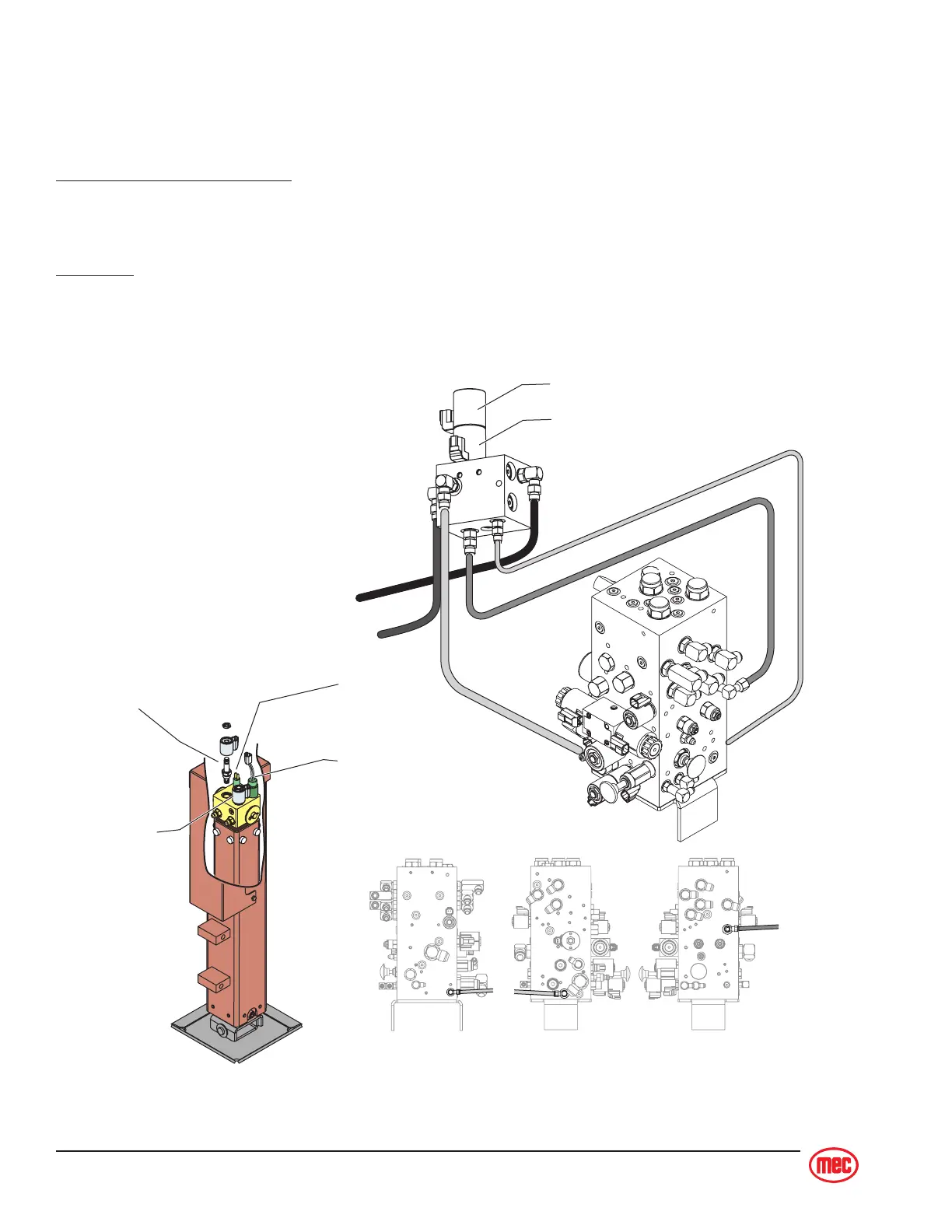

OPTIONAL OUTRIGGERS
Note: Refer to Section 3 for detailed description and troubleshooting.
Refer to
Cylinder Repair .
Outrigger Hydraulic Manifold
The Optional outrigger manifold is located in the Control Module behind the Lower Control Box.
Cylinders
Four (4) double acting type hydraulic cylinders.
