"3072RT / 3772RT / 3772RT HD" Service & Parts Manual - ANSI Specifications March 2008
Page 1-19

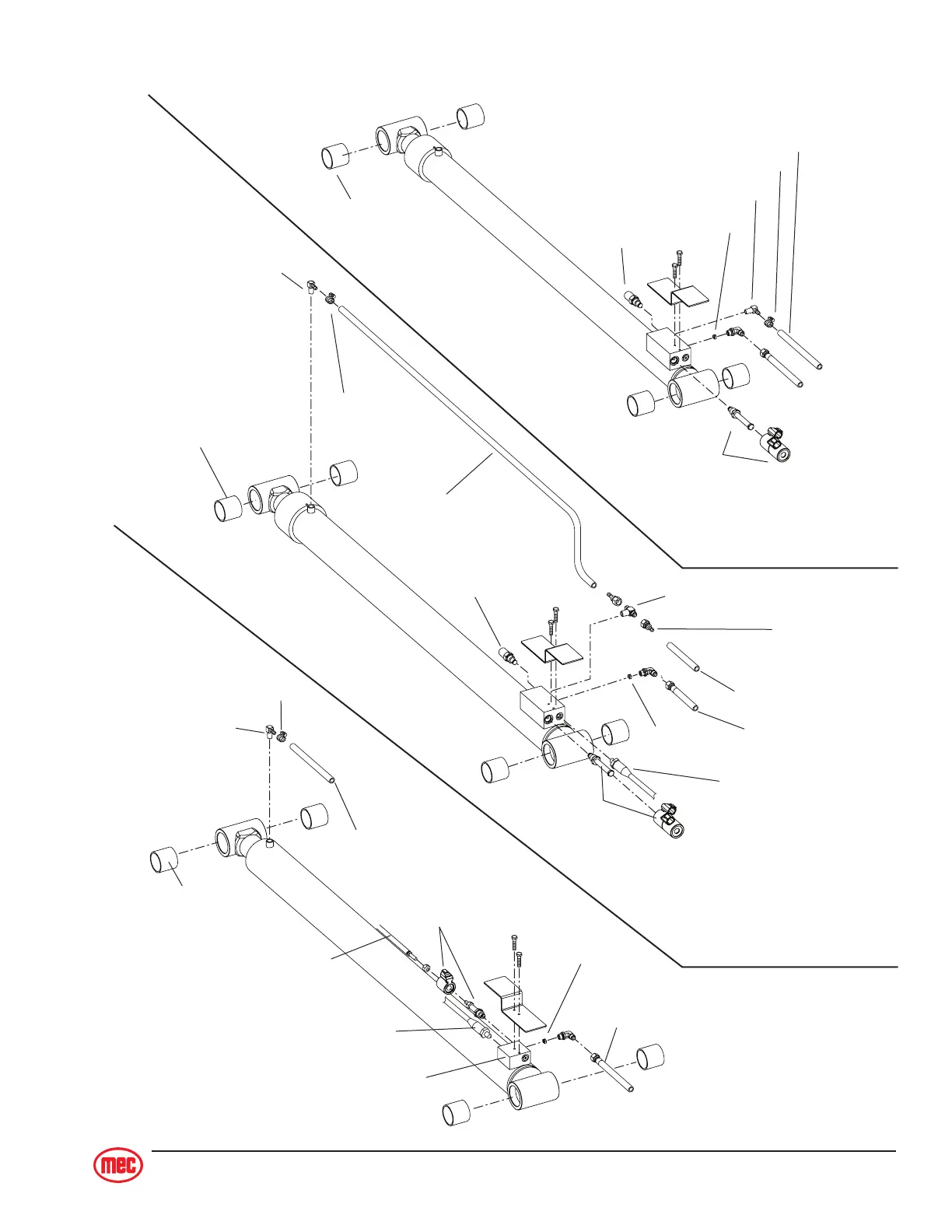

Cylinder Valve Manifold
Pressure Sensor
Down Valve
3072RT
LIFT CYLINDER
WITH BEARINGS
Pressure Hose
Orifice
Emergency Down Cable
Return Hose
Bearing
Barbed Fitting
Hose Clamp
3772RT
LOWER LIFT CYLINDER
WITH BEARINGS
Electrically
Operated
Down Valve
Return Hose
2 Barbed Straight
Fittings and
Hose Clamps
Pressure Hose
Pressure Sensor
Tee Fitting
Orifice
Return Hose
Barbed Elbow Fitting
Hose Clamp
Bearing
Relief Valve
3772RT
UPPER LIFT CYLINDER
WITH BEARINGS
Electrically
Operated
Down Valve
Orifice
Return Hose
Barbed Elbow Fitting
Hose Clamp
Relief Valve
Bearing
