Hoses and Cables
Note: Refer to
Parts Section 5
for detailed hydraulic hose diagrams.
Inspect all hoses and electrical cables for security and damage. Hoses and cables should be
examined for rubbing and chafing.
Check for leaks at fittings. Replace any damaged hose or cable.
1. Tag hoses for proper reassembly.
2. Disconnect hoses and IMMEDIATELY cap the openings to prevent contamination.
3. Torque hose fittings according to the Hydraulic Torque Specification Table.

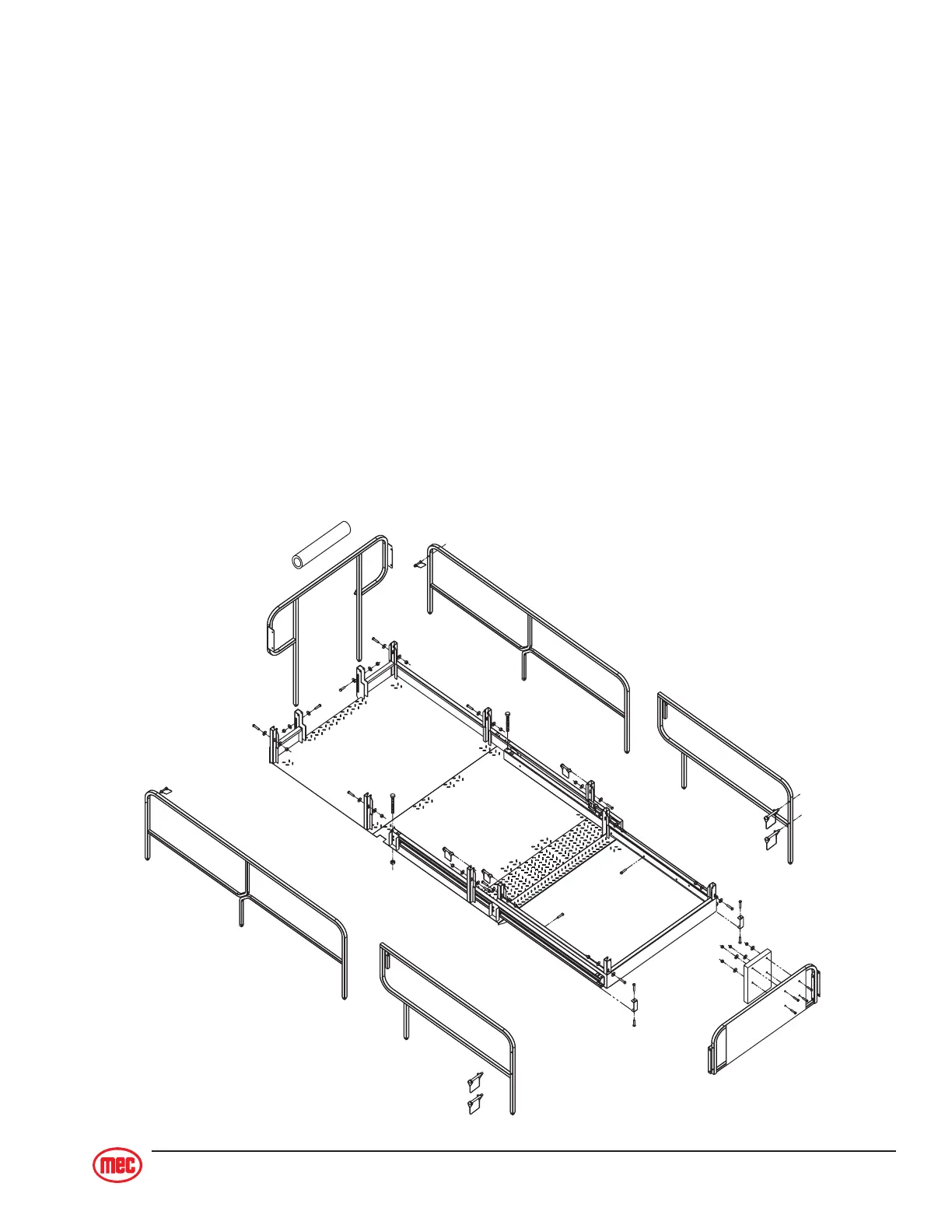

Platform Removal
1. Raise platform about three (3) feet (1.0 m) and block the arms in the raised position. Also,
connect overhead crane by appropriate lifting device to platform.
2. Disconnect all platform wires.
3. Remove the bolts from both platform brackets at the rear of the machine.
4. Slide platform and roll out deck off the machine.
