March 2008 "3072RT / 3772RT / 3772RT HD" Service & Parts Manual - ANSI Specifications
Page 1-16

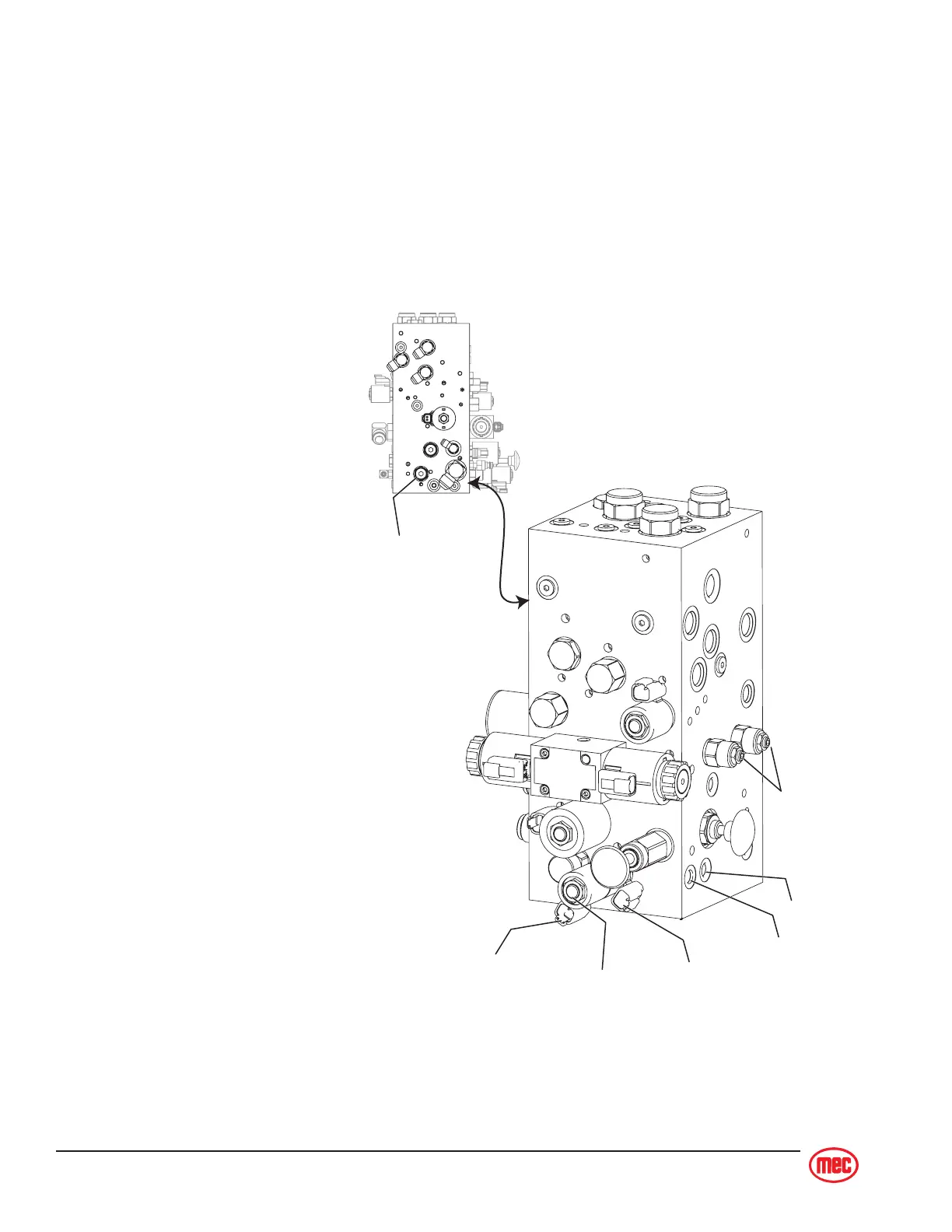

LEFT SIDE
Steer Relief Valve
Steer Right
ORG/WHT
Steer Right
Port
Steer Left
Port
Steer Left
GRN/RED
4 Way-3 Position Solenoid
Operated Hydraulic
Directional Control
Cartridge Valve
Counterbalance
Valves
STEERING CIRCUIT
Note: Refer to
Hydraulic Manifold
and
Relief Pressure Adjustment Procedure
.
Refer to
Section 3
for Remove and Replace instructions.
Refer to
Parts Section 5
for hose routing.
The steering system consists of the following components:
• The wheel motor housings have pivots on the top and bottom, and are mechanically linked
together via a tie-rod.
• Steering is accomplished hydraulically by using two (2) double-acting cylinders, and a
4-way 3-position solenoid-
operated, hydraulic direc-
tional control cartridge
valve.
• Maximum steering pres-
sure is limited by the relief
valve (refer to
Relief Pres-
sure Adjustment Proce-
dure
).
