"3072RT / 3772RT / 3772RT HD" Service & Parts Manual - ANSI Specifications March 2008
Page 1-17

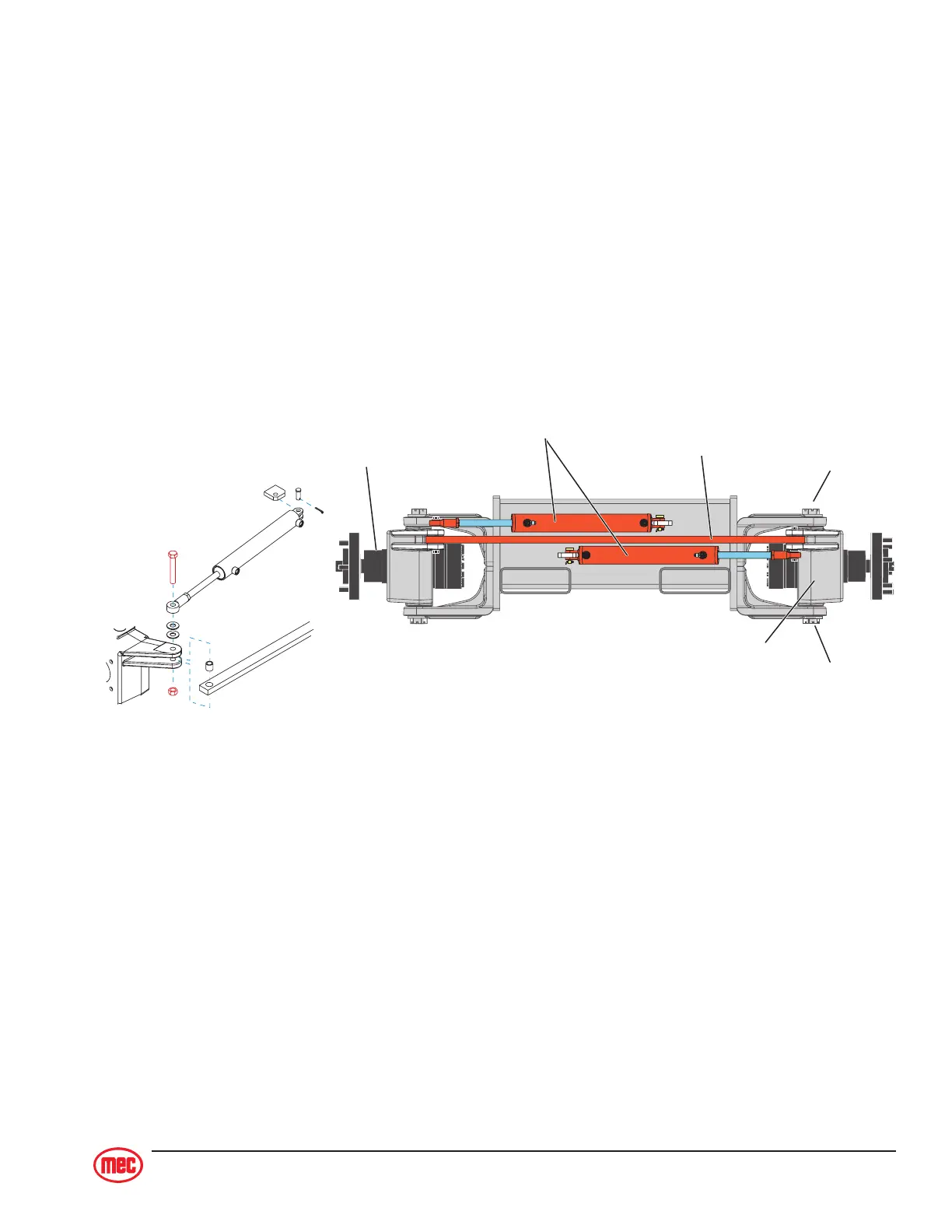

Wheel Motor
Tie Rod
Motor
Housing
Pivot
Motor
Housing
Motor
Housing
Pivot
Steer Cylinder
Steer Cylinder
Note: Refer to
Cylinder Repair
.
Refer to
Section 3
for Remove and Replace instructions.
Refer to the
Parts Manual, Section 5
for parts list.
There are two (2) cylinders utilized in the steering system. These cylinders are a double acting
type which requires oil flow to operate the cylinder rod in both directions. Directing oil forces the
piston to travel towards the rod end of the barrel, extending the cylinder rod. By directing oil to the
rod side of the cylinder the piston will be forced in the opposite direction and the cylinder rod will
retract.
