"3072RT / 3772RT / 3772RT HD" Service & Parts Manual - ANSI Specifications March 2008
Page 1-13
9
35
18
5
7
21
23
36
17
19
6
8
20
24
37
22
16
4
2
1
16
3
15
10
31
10
34
13
12
11
33
32
14
30
29
28
27
26
25
“V” Marks for Reassembly
16
432
15
1
1
6
3
7
2
5
4
TORQUE
SEQUENCE
PRE-TORQUE = 10 FT LBS
FINAL TORQUE = 50 FT LBS
.630
.620
Piston
Rear Housing Mounting Surface
Front Housing
1. Dust Seal
2. Metal Backup Shim
3. Backup Seal
4. Shaft Seal
5. Small Piston O-Ring Seal
6. Small Piston Seal
7. Large Piston O-Ring Seal
8. Large Piston Seal
9. O-Ring Seal
10. Body
Seals (3)
11. Manifold Seal
12. Commutator Seal
13. O-Ring Seal
14. Backup Seal
15. Housing
16. Shaft Bearing
17. Friction Disks (10)
18. Disk Stampings (9)
19. Thick Disk Stampings (2)
20. Piston
21. Springs (25)
22. Spacer Shims (1–3)
23. Rear Housing
24. Capscrews (8)
25. Drive Link Spacer
26. Drive Link
27. Rotor Assembly
28. Manifold
29. Commutator Assembly
30. Endcover Piston
31. Piston Spring
32. Endcover
33. I.D. Tag Assembly
34. Assembly Bolts (7)
35. Shaft
36. Shaft Key
37. Shaft Nut

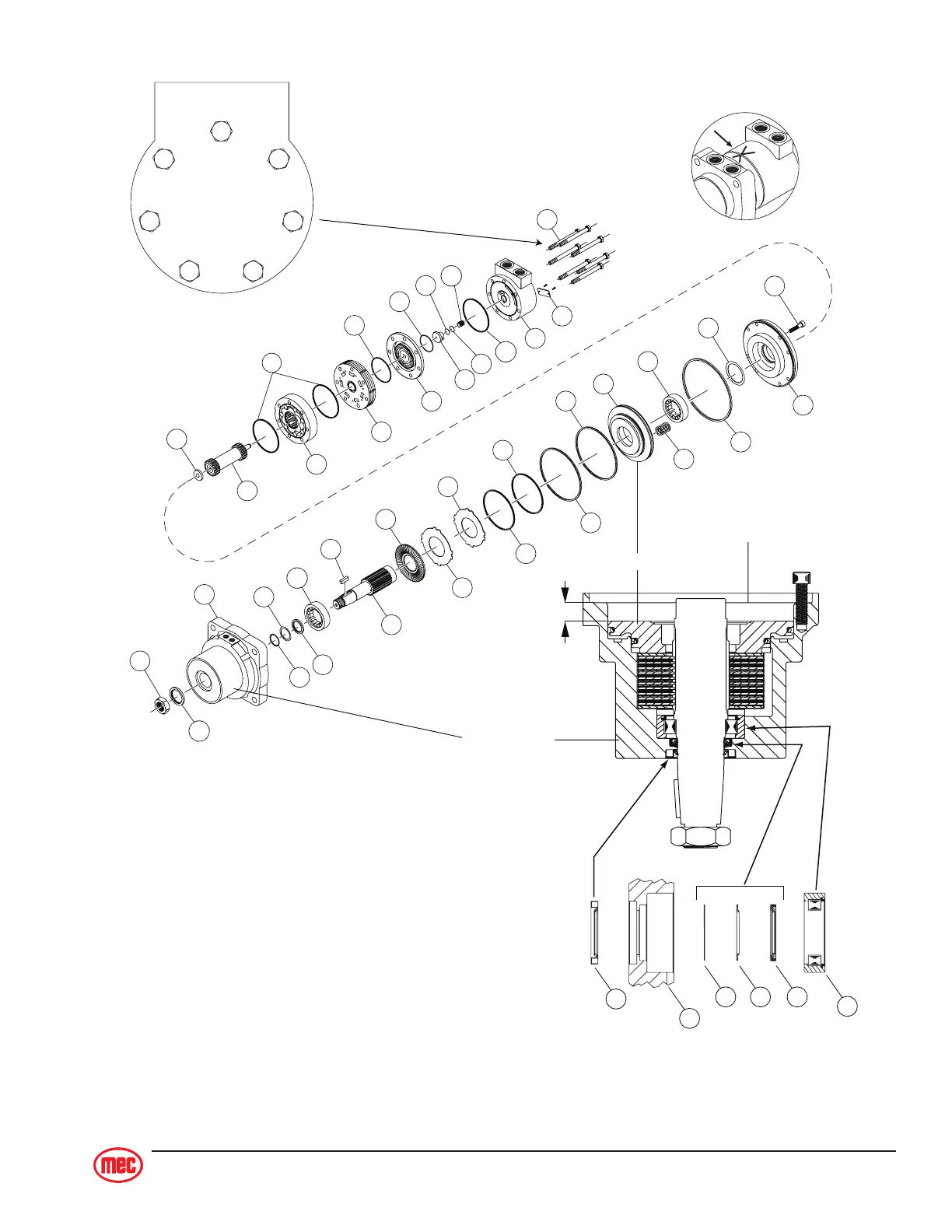

DT710 BRAKE MOTOR COMPONENTS
