Page 54 65-J Diesel - Operator’s Manual
September 2022Section 11 - Transport and Lifting Instructions
4. Attach straps to each end of the
pin and secure appropriately.
Place padding between the straps
and the machine to protect the
machine nish.

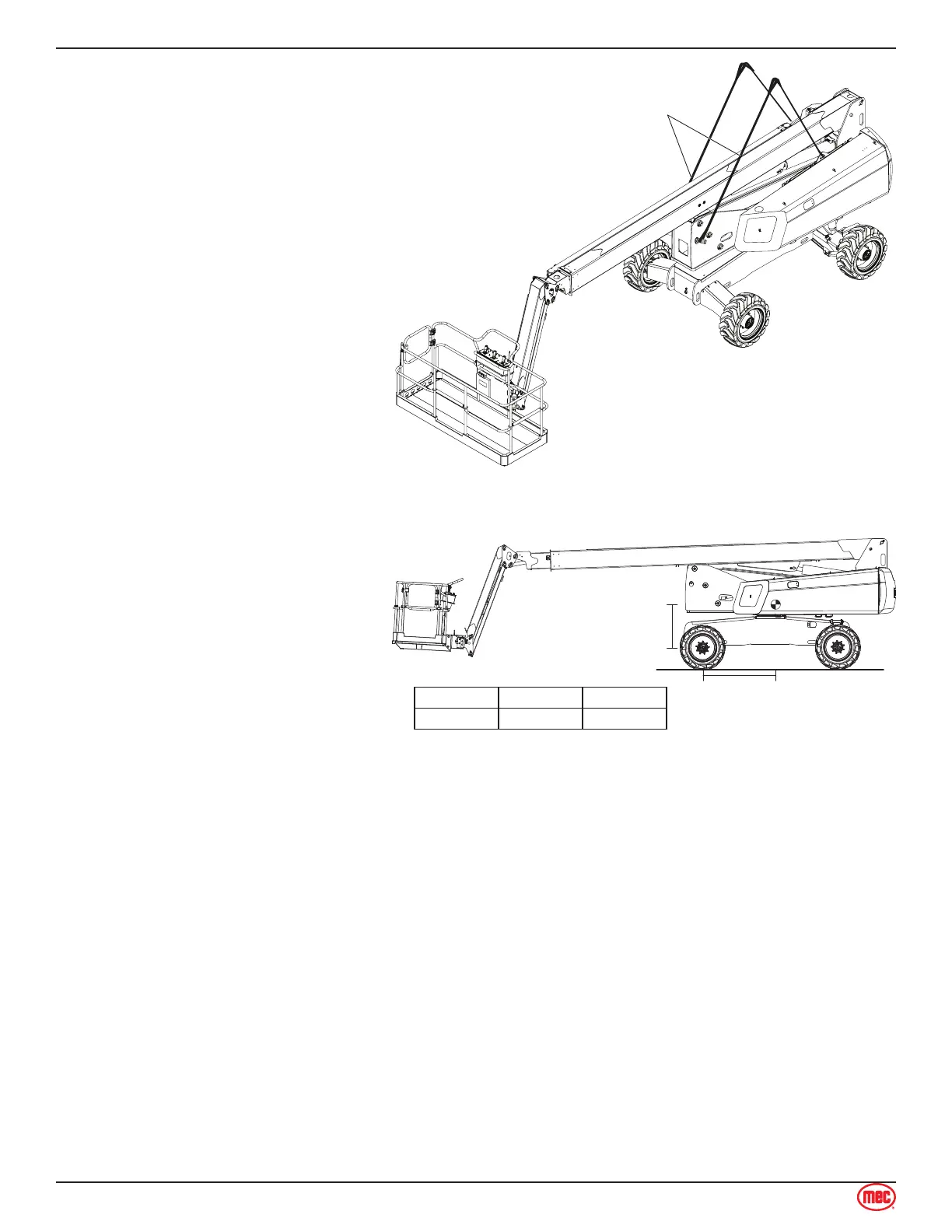

5. Attach straps to each of the
triangle shaped lifting points on
the turntable side sheets above
each module door. Shackles and
clevis pins may be necessary.
Art_5521
Straps
6. Locate the machine’s center of
gravity and rig as shown below.
Center of gravity measurements
are taken from the center of the
non-steering wheel.
Carefully lift the machine.
7. When the machine is in place
disengage the Rotation Lock
before operation.
This procedure is nished.
ART_4899
Y Axis
X Axis
Distance from center of non-steering wheel
Center of Gravity
65-J Boom
X Axis
60 in / 152 cm
Y Axis
33.4 in / 85 cm
