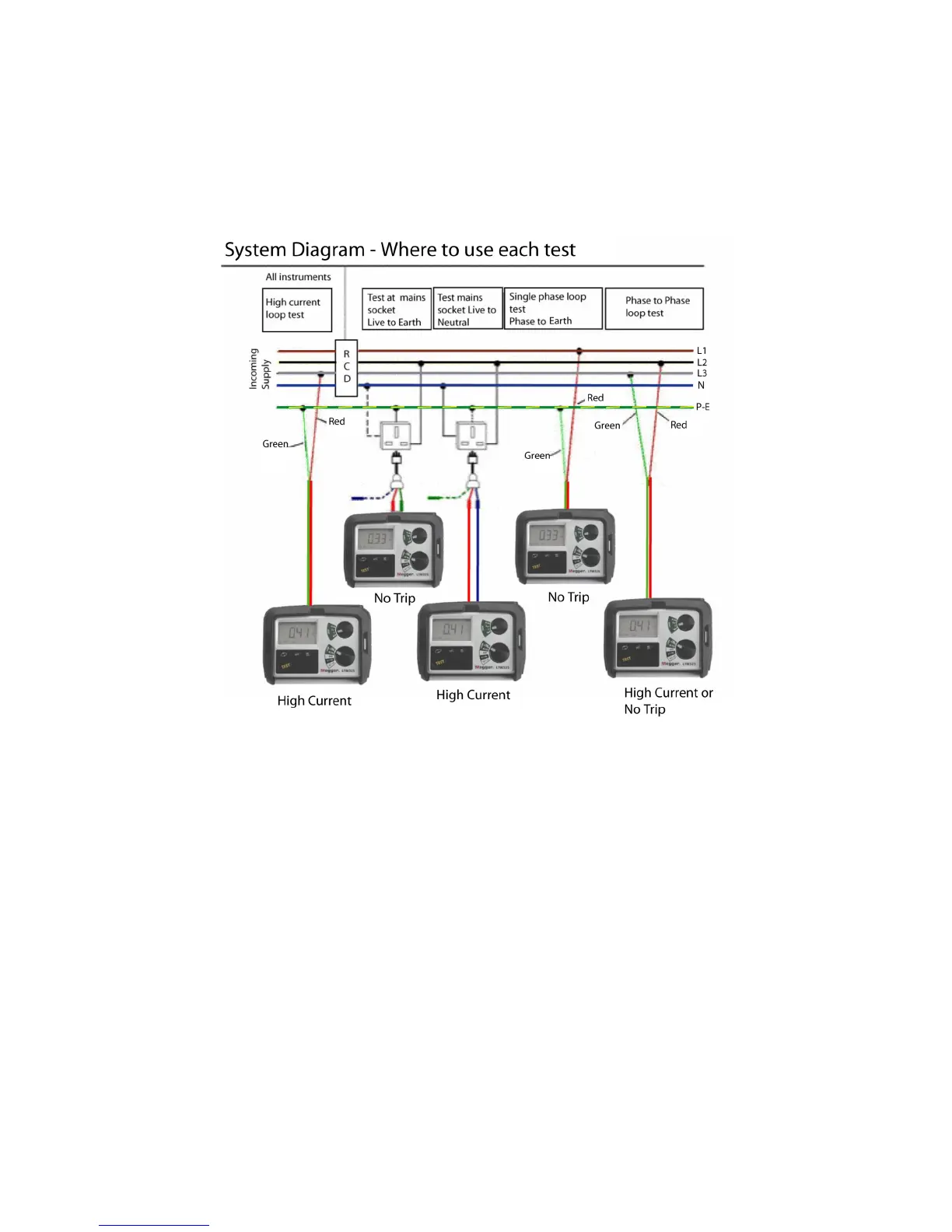

Megger LTW425 - Test Lead Connection Procedures; System Diagram for Test Lead Connections

11
WARNING: A plug severed from the power cord must be destroyed, as a plug with bare conductors is hazardous
in a live socket outlet.
4.3 Test lead connection
The supplied test leads should be connected to the appropriate sockets on the rear of the instrument marked
L0/L2 and L1.
Standard test probes and crocodile clips and mains socket test lead are supplied for connection to the circuit
under test.
