Megger LTW425 - LCD Display

6
RCD Trip
Indicator

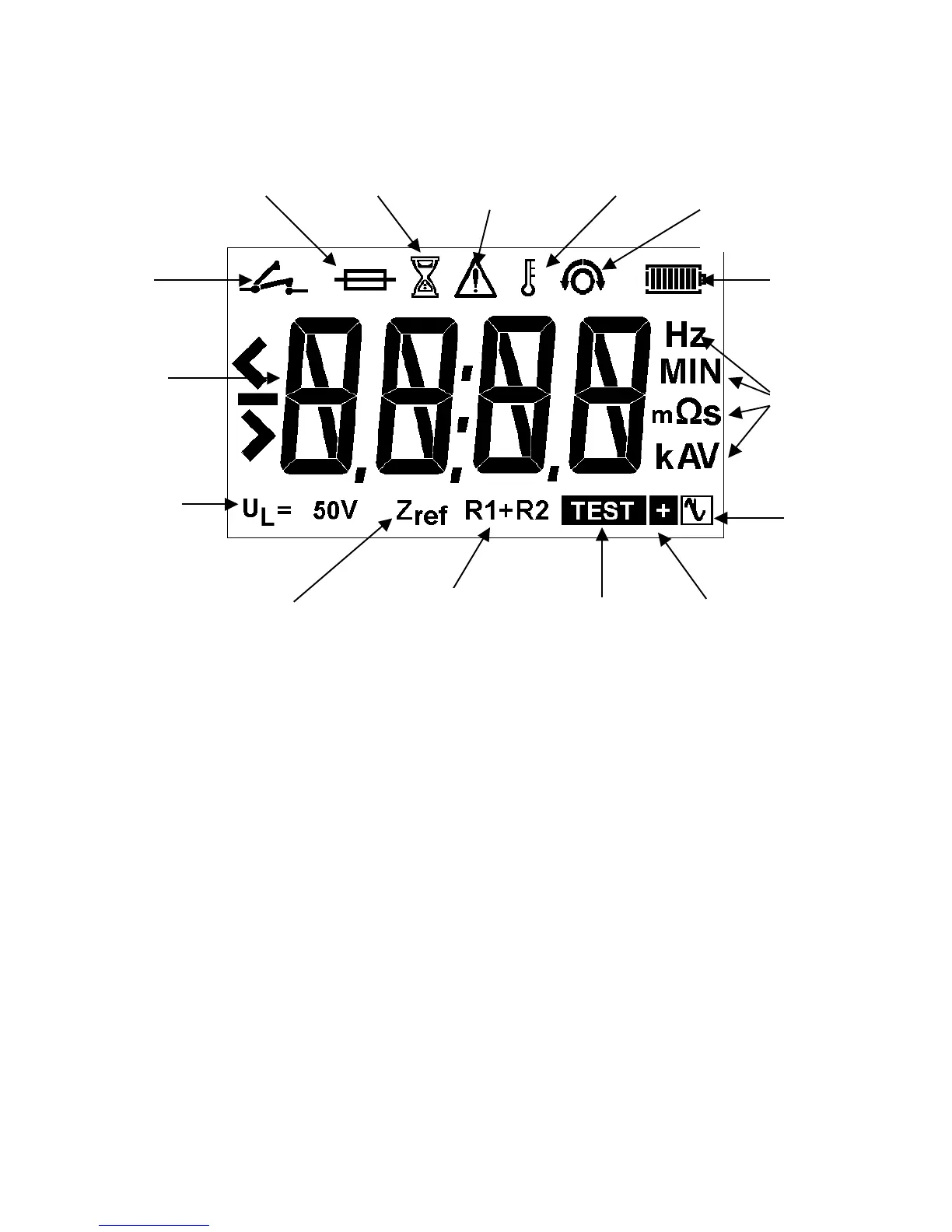

2.2 LCD display
Touch
voltage
selected
Measured
results
Fuse Blown
Refer to
User manual
Battery status
Ranges
Supply
noise
warning
R1+R2 Function
selected
Zref function selected
(required before R1+R2 can
be measured)
Loop test
active
Temperature warning
Wait
Loop test extended
(Mode 2 operation)
Test Lead NULLED
Indicator
