Owners manual MELEX 4XX MELEX 2021/01
10

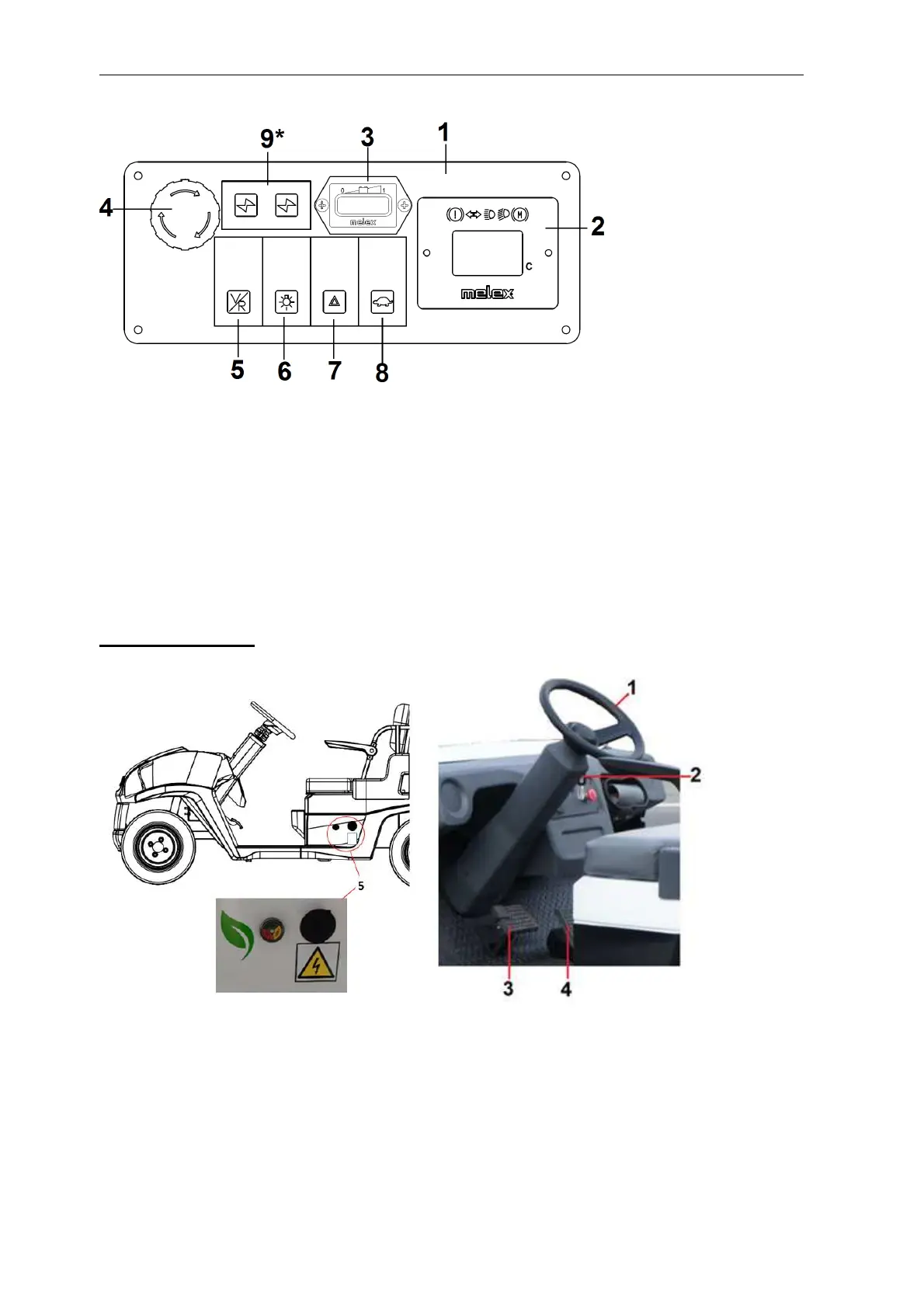

Dashboard panel for 447
Drawing 3-6
1. Control panel 6. Main lights switch
2. Speedometer + controlling lamps 7. Emergency lights switch
3. Battery discharge indicator 8. Slow/fast drive mode switch
4. NOT-AUS switch 9*. Signaling lamp of monitoring of electric installation
correct activity (for homologated models)
5. F-R switch
Model 423, 433, 435
Drawing 3-7
1. Steering wheel 4. Pot box
2. Key switch with interlock 5. Charger receptacle
3. Braking pedal
