Owners manual MELEX 4XX MELEX 2021/01
39
Lighting, signaling and additional installation devices:
Item
Description
8 Converter
9 Fuse box
10 Pulled hand brake switch
11 Speedometer sensor
12 Brake fluid level sensor
13 Control panel
14 STOP light switch
15 Acoustic signal (horn)
16 Fuse 200A (250A – motor 5 kW)
17 Wiper and washer drive
18 Signaling diode of AC controller
19 Reverse driving beeper
20 Anti-shortcircuit fuse of electric installation of negative pole 30A
21 Orange warning lamp MB12AME 10-100V AUTOLAMP
22 Acoustic forward driving signal CH.09-525/QF
23* Connection by cable of vehicle with metal structure of top
*only in case of homologated vehicles
Table 5-6-14
5.7 Side reflective lighting – homologated models
Reflective lights are mounted in homologated models 445, 465 and 463.

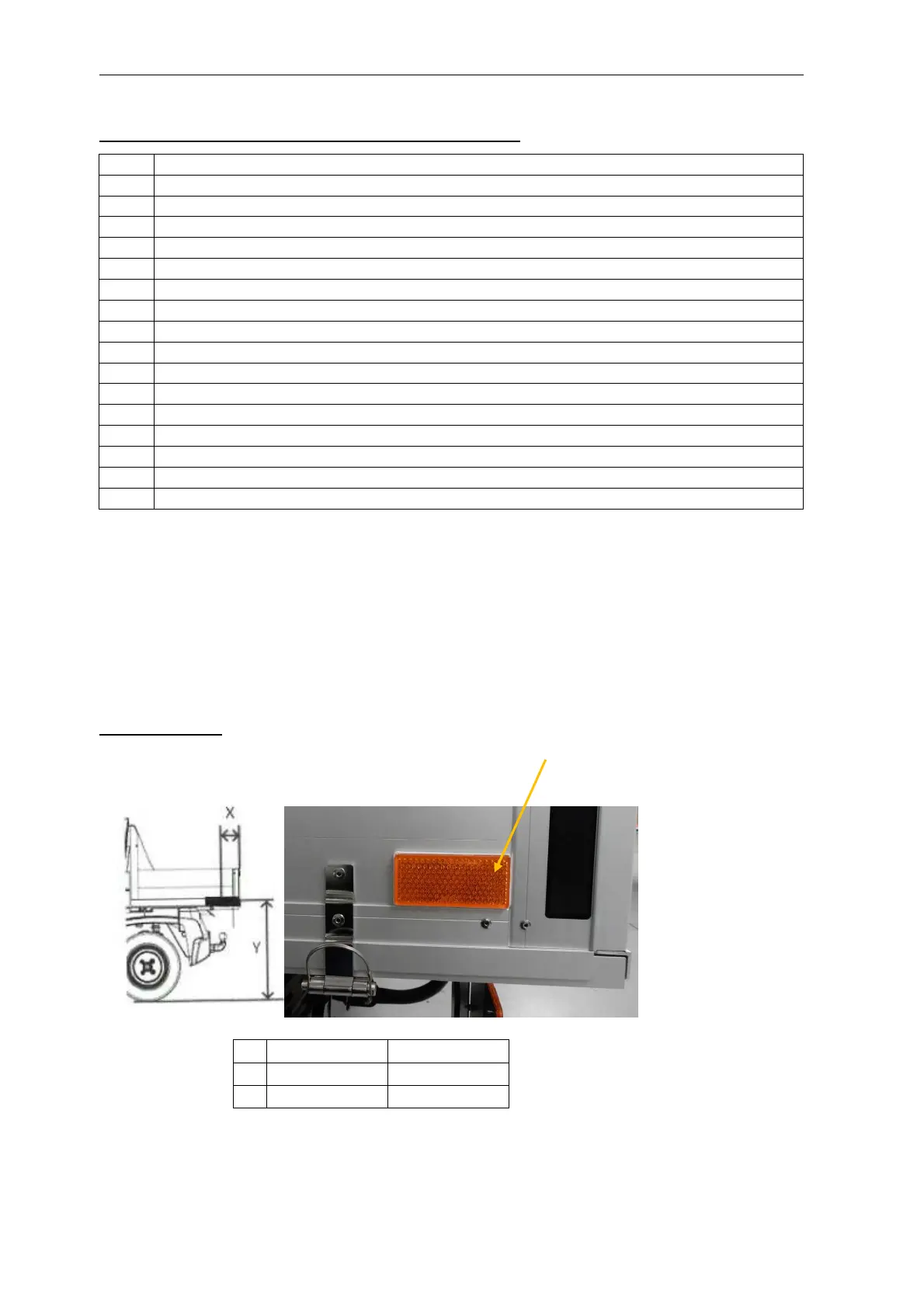

Below there s an illustration showing the place of assembly.
Model 445, 465
Model 445 Model 465
X 30-860 mm 30-1200 mm
Y 250-950 mm 250-950 mm
Reflective lights
