List of Fuses
5.6. Devices of lighting and signalling installation
Model 443

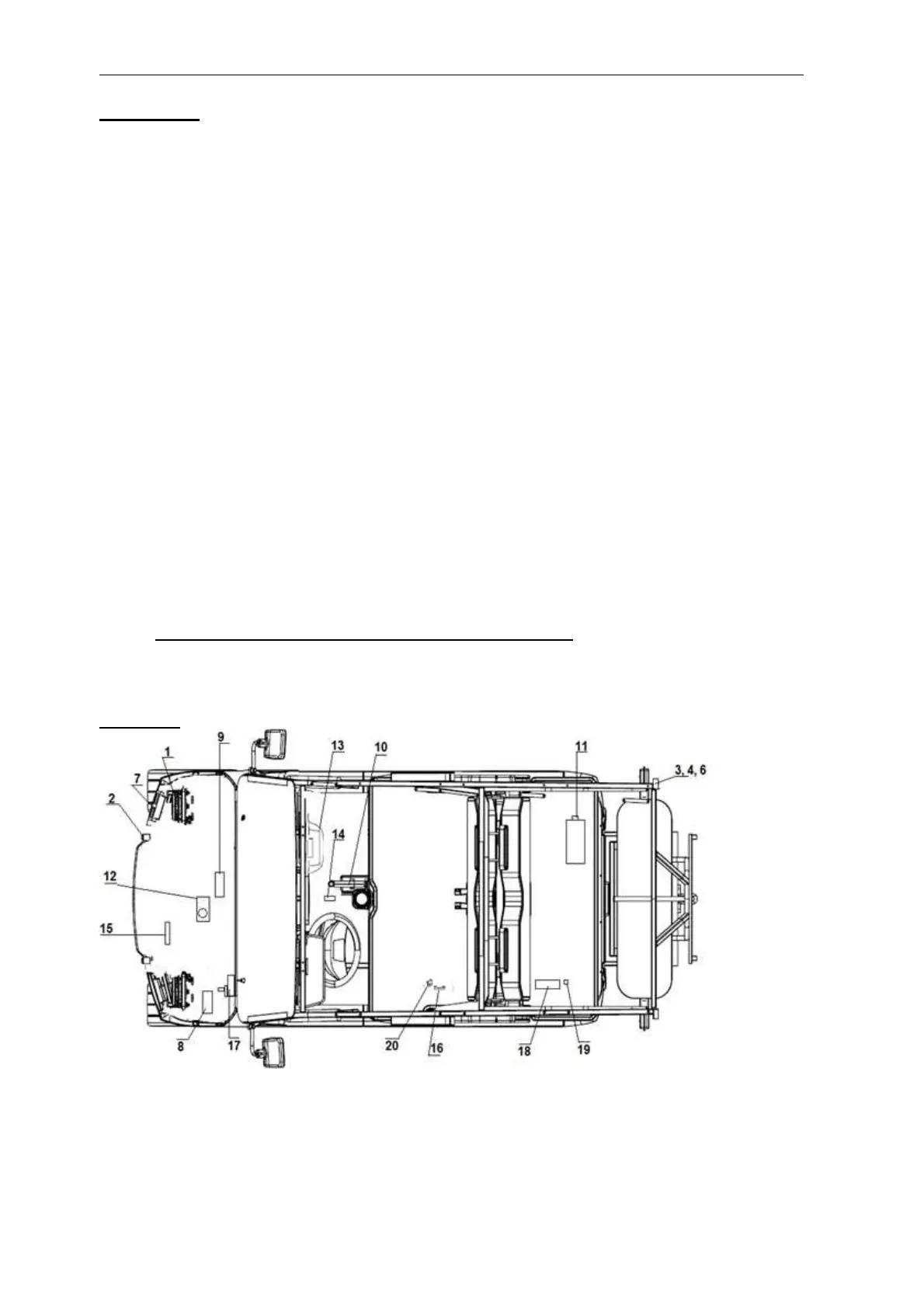

Drawing 5-6-1
No of
socket
Fuse value The fuse protects
1 10 A Emergency lights and horn
2 7,5A turn indicator, hand brake
3 7,5A Road light left
4 7,5 A Road light - right
5 7,5 A Passing light – right
6 7,5 A Passing light - left
7 7,5 A Position light -front left lamp, rear right lamp
8 7,5 A Position light -front right lamp, rear left lamp
9 7,5 A STOP and reversing light
10 7,5 A Wiper & windshield washer
11 15A Converter power supply
12 20 A Additional external electric device 12V not switched off
by key-switch: working lights, warning lights, heater,
13 7,5 A or 20A Control power supply installation
14 20 A Additional device 12V switched off by key-switch
15 7,5A Fuse of DRL lamps (day driving) for models 4xx
16 7,5 A or 20A Spare fuse
