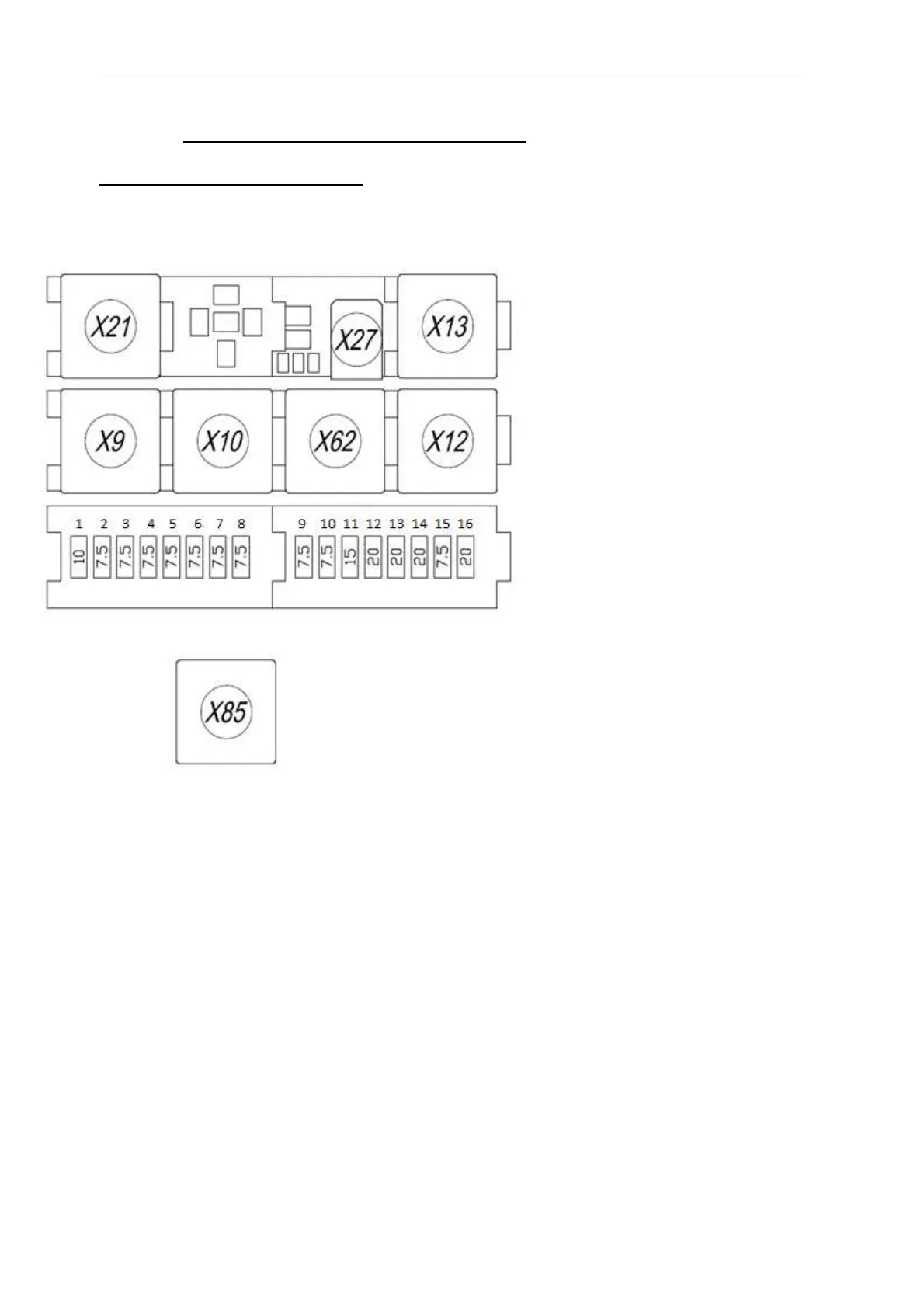

5.5.3. Positions of fuses and relays in the fuse box
Placing the aggregates in fuse box
controller type 1232xx-xxxx/48V, 1234xx-xxxx/48V,
X9 Lighting relay:
0.2D.205.101
X10 Full lights – MPM P-01/36-48V
X12 Turn - signals interrupter of LED lamps:
200.1H3.02
X13 Hand brake blockade - relay:
0.2D.205.101
X21 Charging blockade - relay:
MPM P-01/36-48V
X27
(1)
STOP lamps relay of braking by motor:
677
X62 Front position lamps relay 0.2D.205.101
X85* Insulation resistance monitor relay: MPM
P-01/36-48V
DC/DC
– (shortcut from converter), fuse of device
generating voltage 12Vdc in vehicle
XK
– (additional devices), fuse protected circuits
with devices for different equipment
options: lighter socket; labor lamps;
warning lamps; standing heating device
etc.(pos. 14)
Steering
- fuse of installation responsible for
vehicle steering service
* - Homologated models
(1)
- not applicable to the model 463
