Owners manual MELEX 4XX MELEX 2021/01
7
3. VEHICLE STEERING SYSTEM ELEMENTS
Model 4xx
Models 443, 445, 463, 464, 465, 466, 468, 469 - with AC 48V system

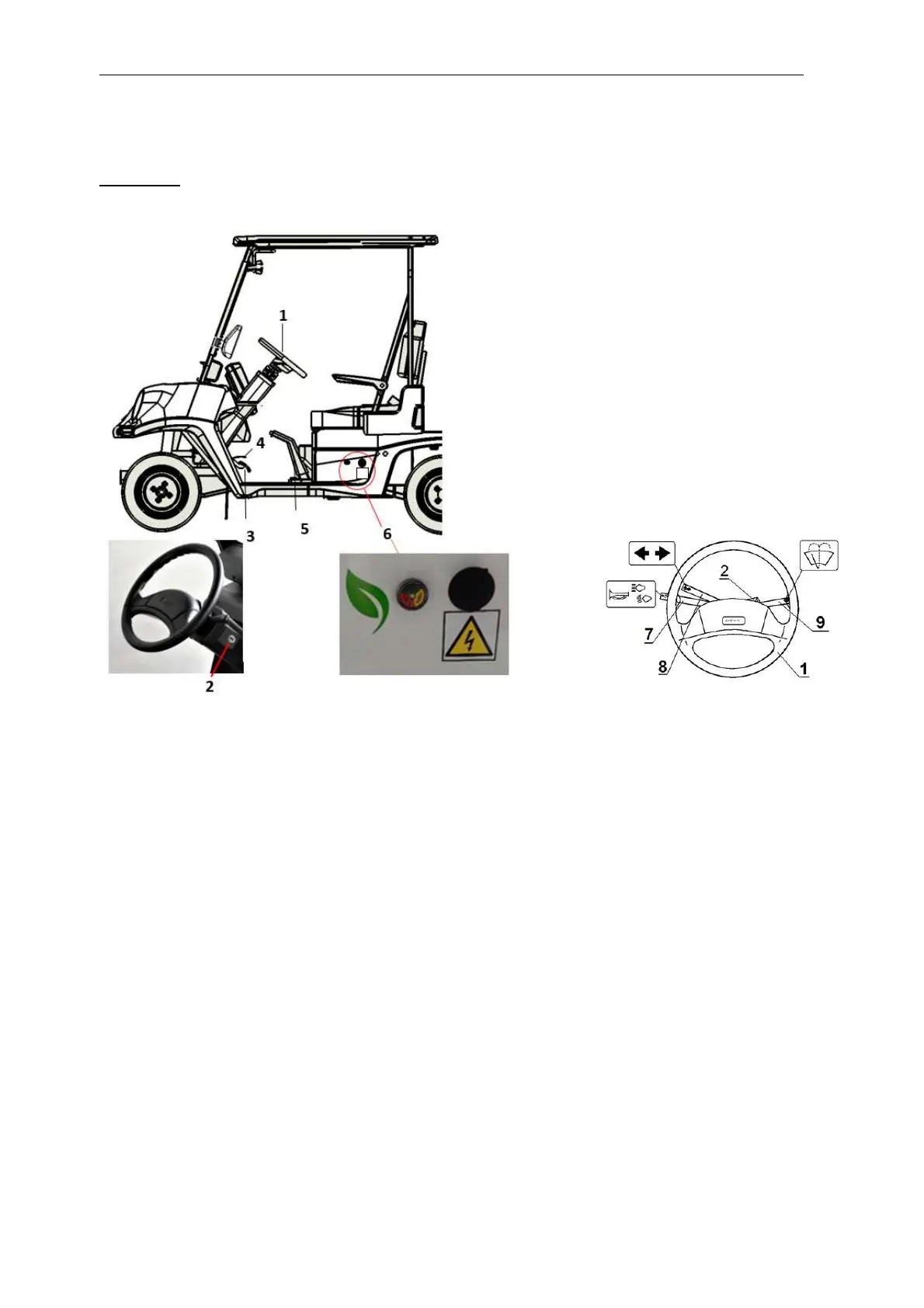

Drawing 3-1
1. Steering wheel 6. Charging receptacle
2. Keyswitch with interlock 7. Road lights switch lever
3. Brake pedal 8. Direction indicators switch lever
4. Accelerator pedal 9. Washer and wiper switch lever
5. Hand brake lever
