Mellanox Technologies MCX312B-XCCS User Manual

ConnectX®-3 Pro Ethernet Single and Dual QSFP+ Port Adapter Card User Manual Rev 1.7
Mellanox Technologies
52
Appendix A: Interface Connectors Pinout
A.1 QSFP+ Connector Pinout

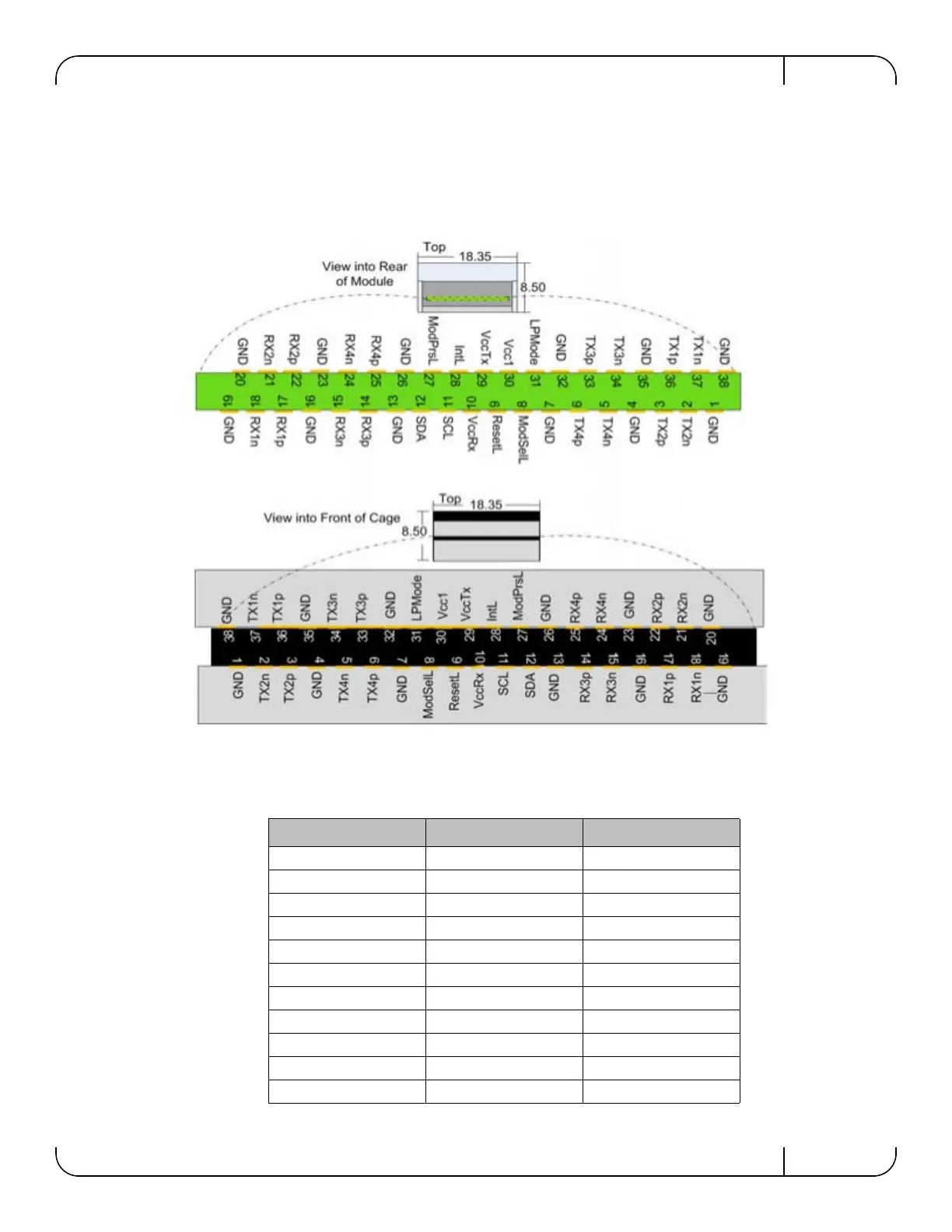

Figure 11: Connector and Cage Views
Table 10 - Connector Pin Number and Name to Signal Name Map
Connector Pin Number Connector Pin Name Port A Signal Name
1 GND GND
2 TXN_2 Tx2n
3 TXP_2 Tx2p
4 GND GND
5 TXN_4 Tx4n
6 TXP_4 Tx4p
7 GND GND
8 ModSelL_Port0 ModSelL
9 ResetL_Port0 ResetL
10 VccRx
11 SCL SCL
