ConnectX®-3 Pro Ethernet Single and Dual QSFP+ Port Adapter Card User Manual Rev 1.7

Mellanox Technologies

A.2 PCI Express x8 Connector Pinout

The adapter cards use a standard PCI Express x8 edge connector and the PCI Express x8 standard

pinout according to the PCI Express 3.0 specification.

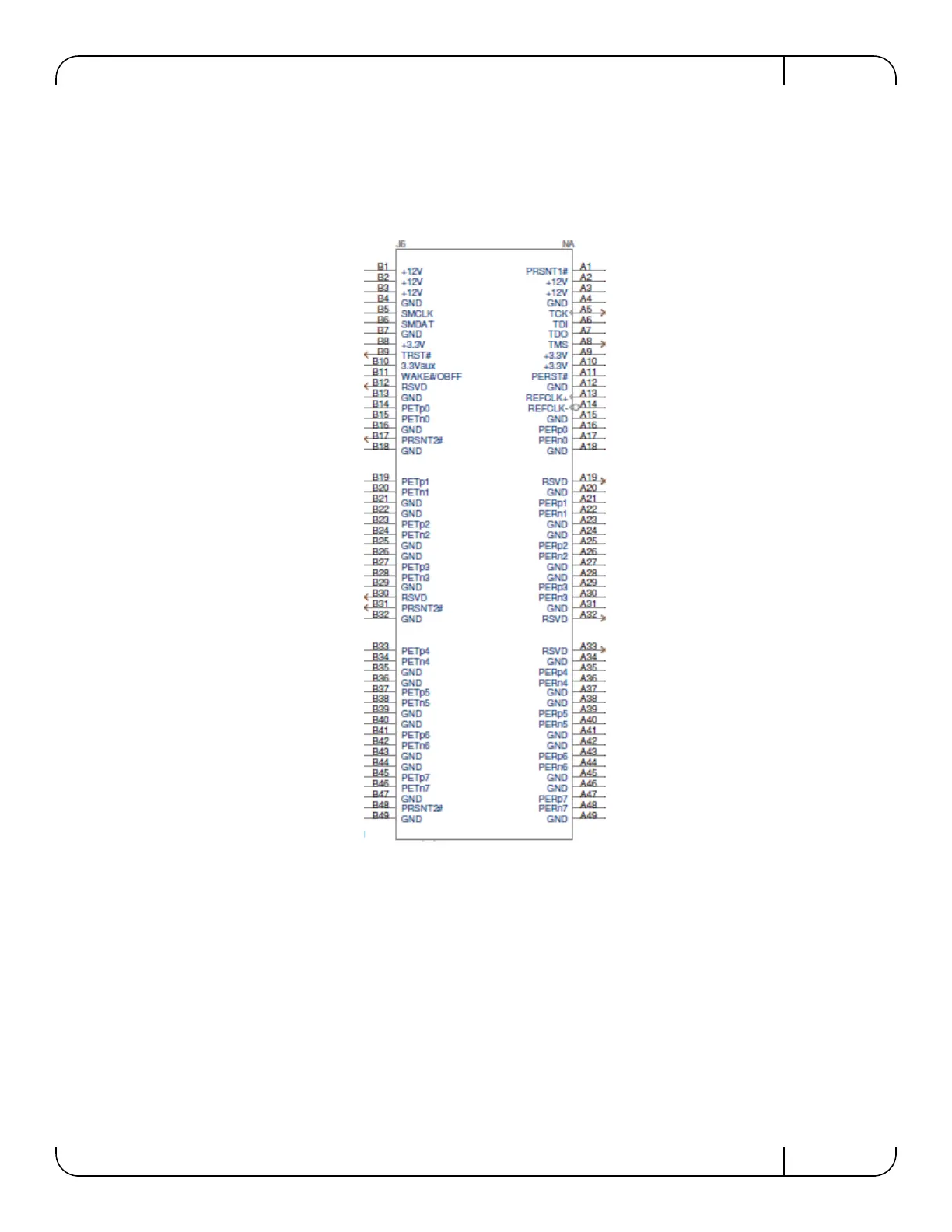

Figure 12: PCIe Connector Pinout
