Memmert BASIC - Page 24

SERVICE - UIS page 24

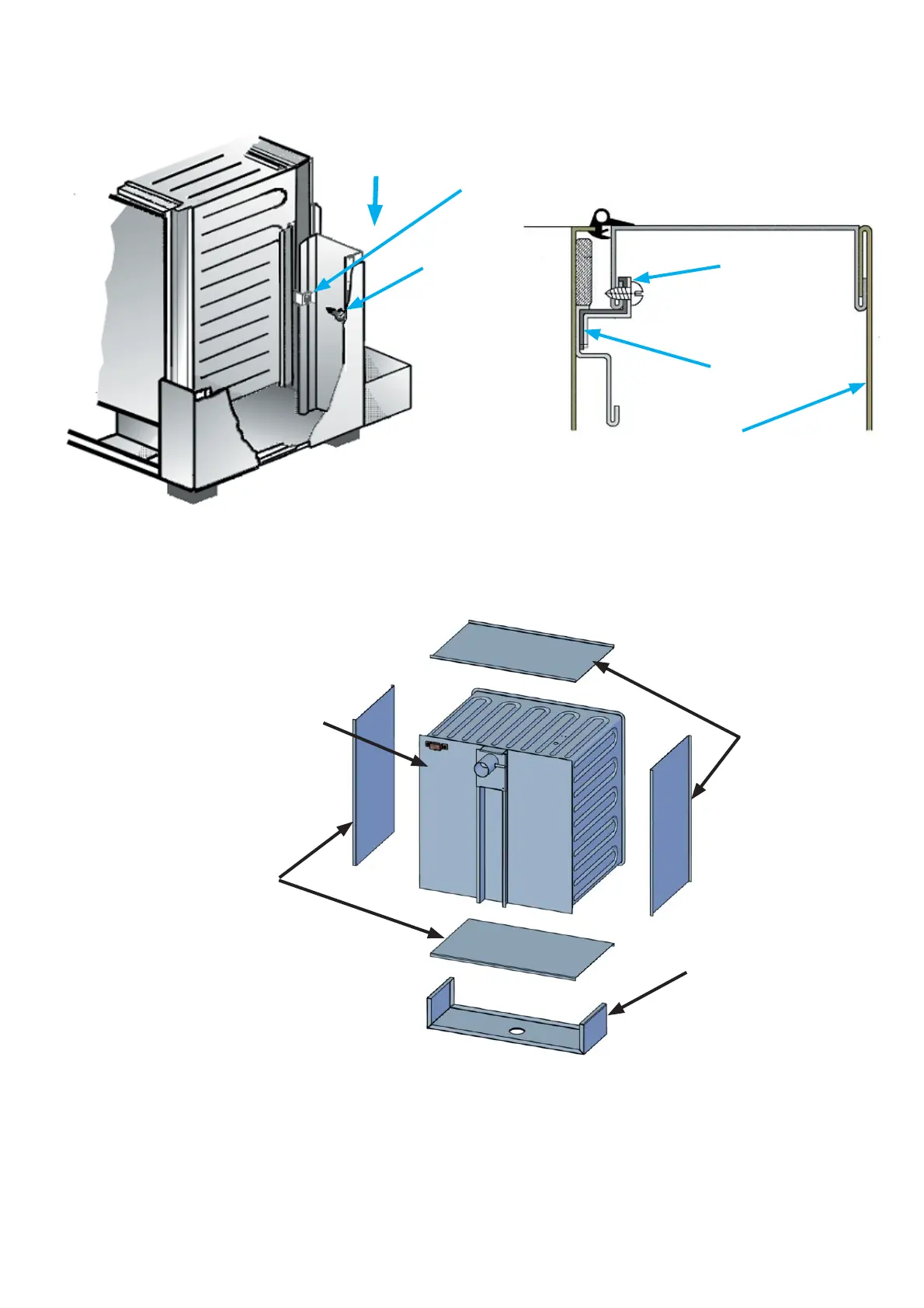

Pull out working chamber seal (see Section 21)
Remove fixation of pipe clip
Expose pipe clip by pressing against the chamber inner walls
•
•
•
Take working chamber out of the housing cage towards the back
After removing the working chamber, remove foil from inlet air duct
Dismantle inlet air duct and heating sheets by releasing the nuts, and change the heating according
to the heating diagram
•
•
•
Arrange the heating elements accurately – it is essential to note the length of the heater ends from
the diagram!
Secure the newly fitted heating coil with aluminium adhesive tape
(supplied with the new heating elements)
•
•
View from above X
View from above X
Pipe clip
Fixation of pipe clip
Fixation of pipe clip
Screw
Housing side panel
Air inlet duct
Heating sheets
Heating sheets
Working
chamber
