SERVICE - UIS
60
page 25

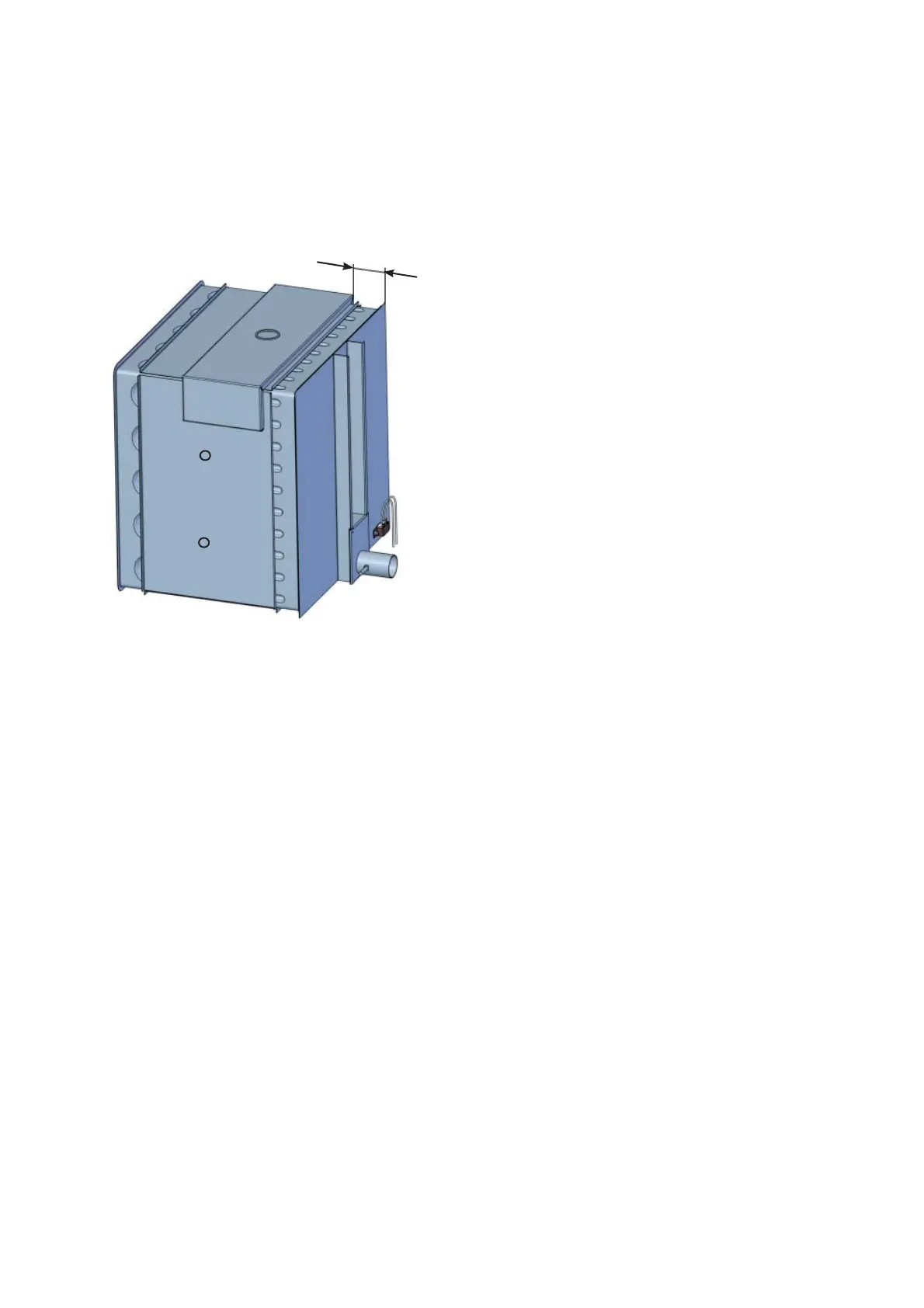

During assembly the air supply duct is affixed to the working chamber with aluminium foil
and adhesive as previously. (Apply adhesive with brush on foil and air inlet duct, wait approx. one
minute and then assemble the parts)
Stick the air supply duct on the chamber with a spacing of 60 mm.
(On Model 100 the air inlet duct is affixed centrally)
•
•
Press the foil down with a cloth and rub it firmly.
During assembly, ensure that the pipe clips are not bent.
•
•
