85-03-01071 D30 DEEP TIMBER Page 28

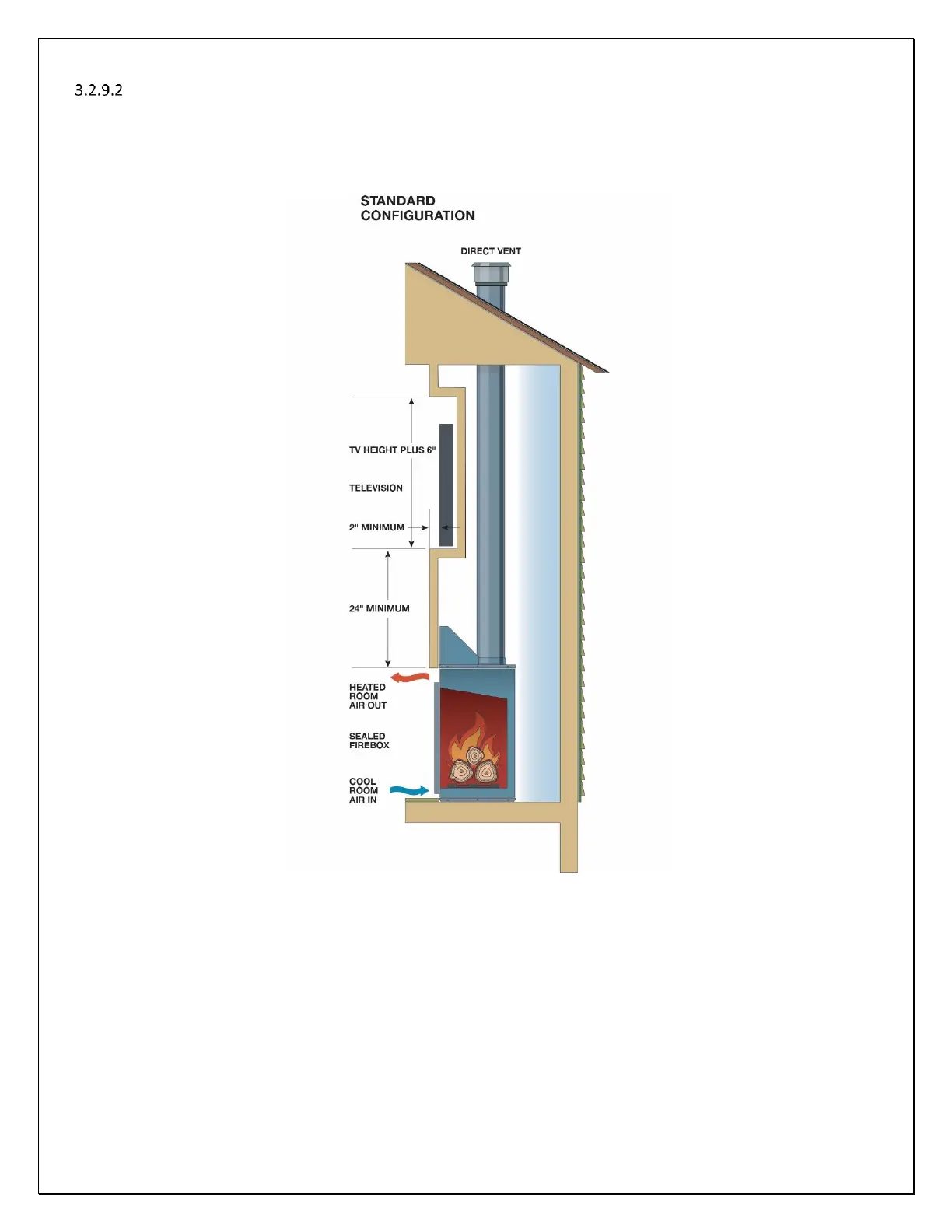

Recommendation 2: Create a recessed cavity
Frame a recessed cavity above the fireplace. The cavity shall be at least 6 inches taller and 6 inches wider than the television. The
cavity’s bottom surface must be a minimum of 24 inches above the top air gap of this fireplace. The cavity must be deep enough for
the television to be recessed at least 2 inches in from the wall.
