85-03-01071 D30 DEEP TIMBER Page 58

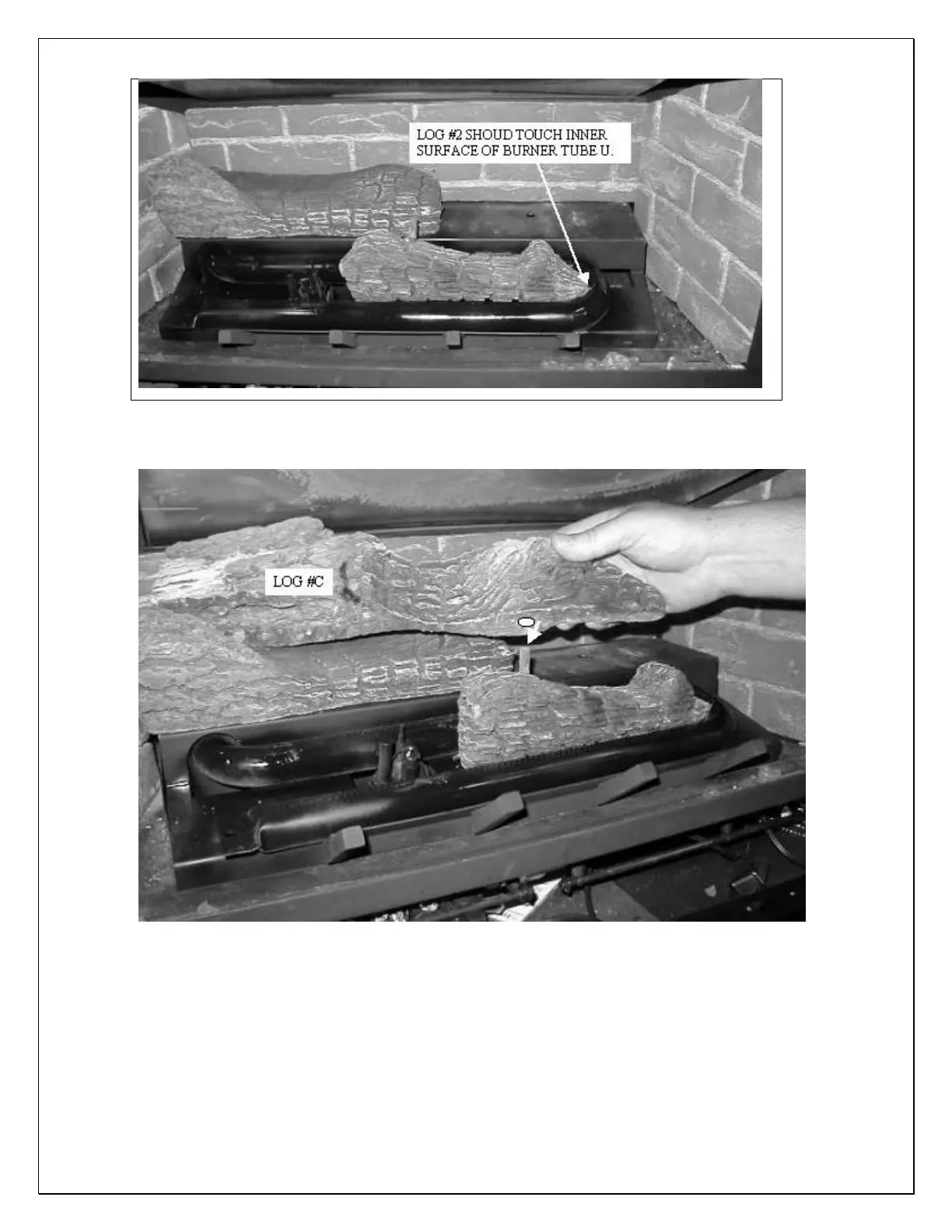

3. Place log “C” behind on top of Log #A and Log #B, as shown. Wide end of Log #C sits on top of Log #A and the pin
protruding up from top of Log #B slides into a hole in the base of Log #C.
