FLUE VENTING COMPONENTS IDENTIFICATION
HIGH ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7500, please contact the
Mendota technical service department for specific venting requirements and venting restrictions.

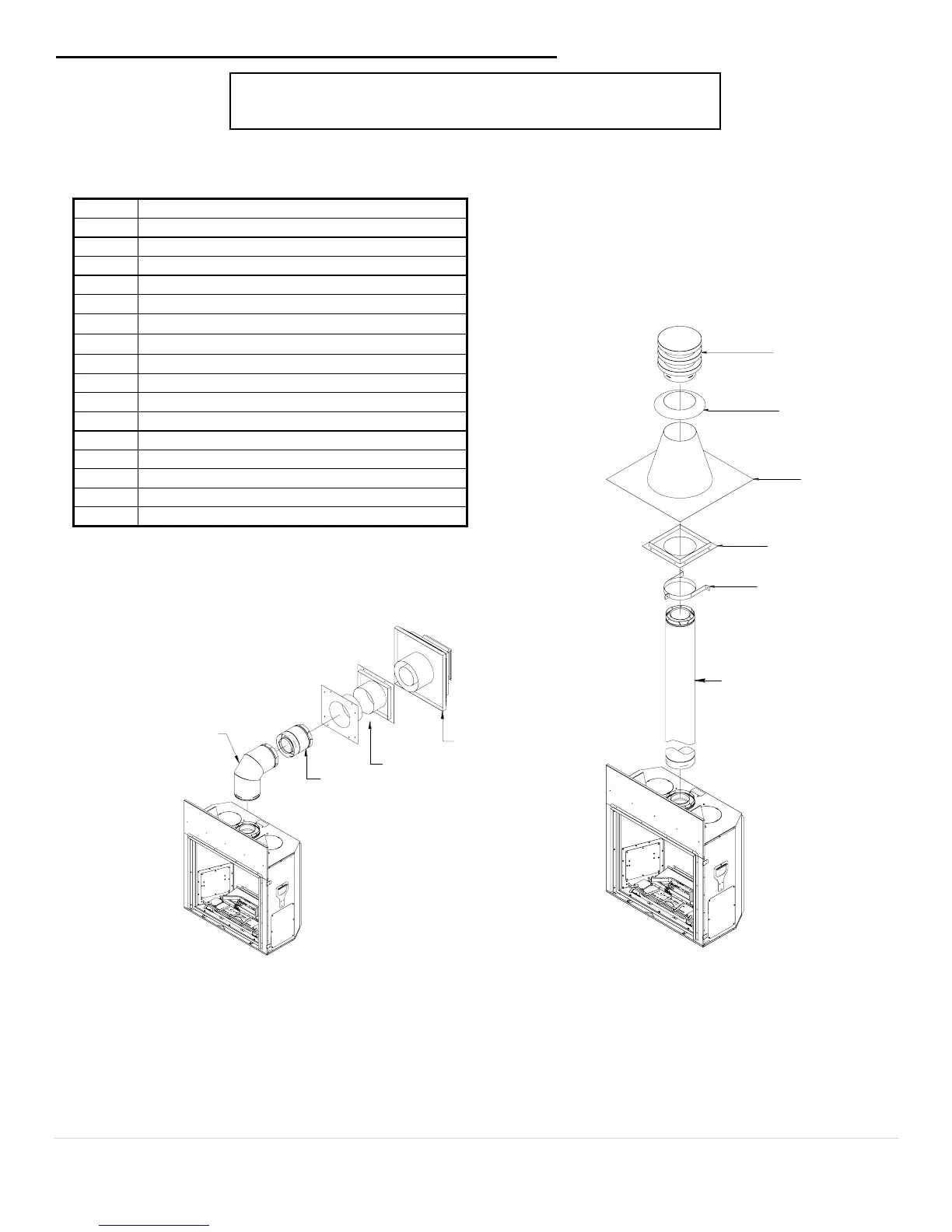

Figure 13: Flue Venting Components
ITEM DESCRIPTION
1 RU´3,3('XUD9HQW´$PHULYHQW´
2 12" VENT STACK
3 24" VENT STACK
4 36" VENT STACK
5 48" VENT STACK
6
90ºGALVANIZED ELBOW
45º GALVANIZED ELBOW
7 ADJUSTABLE WALL THIMBLE
8 ATTIC INSULATION SHIELD 12"
9 ROOF FLASHING (0/12 TO 6/12)
10 ROOF FLASHING (7/12 TO 12/12)
11 STORM COLLAR
12 VERTICAL VENT CAP
13 SUPPORT BAND
14 HORIZONTAL VENT CAP
15 FIRE STOP SPACER
DO NOT SEPARATE TELESCOPING SECTIONS.
USE TELESCOPING SECTIONS AS COMPLETE ASSEMBLIES.
6
1
7
14
1,2,3,4,5
13
15
9,10
11
12
