FV-41 VALVE ASSEMBLY REPLACEMENT PARTS
FV-41 VALVE ASSEMBLY REPLACEMENT PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
1 1 HA-77-00159 VALVE HEAT SHIELD
2 2 65-07-00024 1/8 NPT to Flex CF Coupler
3 1 05-04-00050 SIT Pilot Assembly
4 2 65-14-00042 ORIFICE, #42 22,197 BTU NAT
5 1 05-02-00344 885 PROFLAME SIT VALVE
6 1 05-02-00351 Solenoid, 885 PROFLAME SPLIT FLOW VALVE
7 1 60-01-00018 NIPPLE, 3/8" NPT X 1.5" LONG, 0.493 ID, BLACK
8 1 65-07-00753 Elbow 90 Deg, 3/8 Flared Tube X 3/8" NPT Male, Brass
9 2 65-07-00012 BCF,3/8 TBE X 3/8MPT COMP ELBW
10 1 55-02-00089 3/8" FLARED FLEXTUBE, SS X 9"
11 1 55-02-00073 TUBING, 3/8" OD X 10" SS 304
12 1 55-02-00088 TUBING, 3/8" OD X 30" SS 304

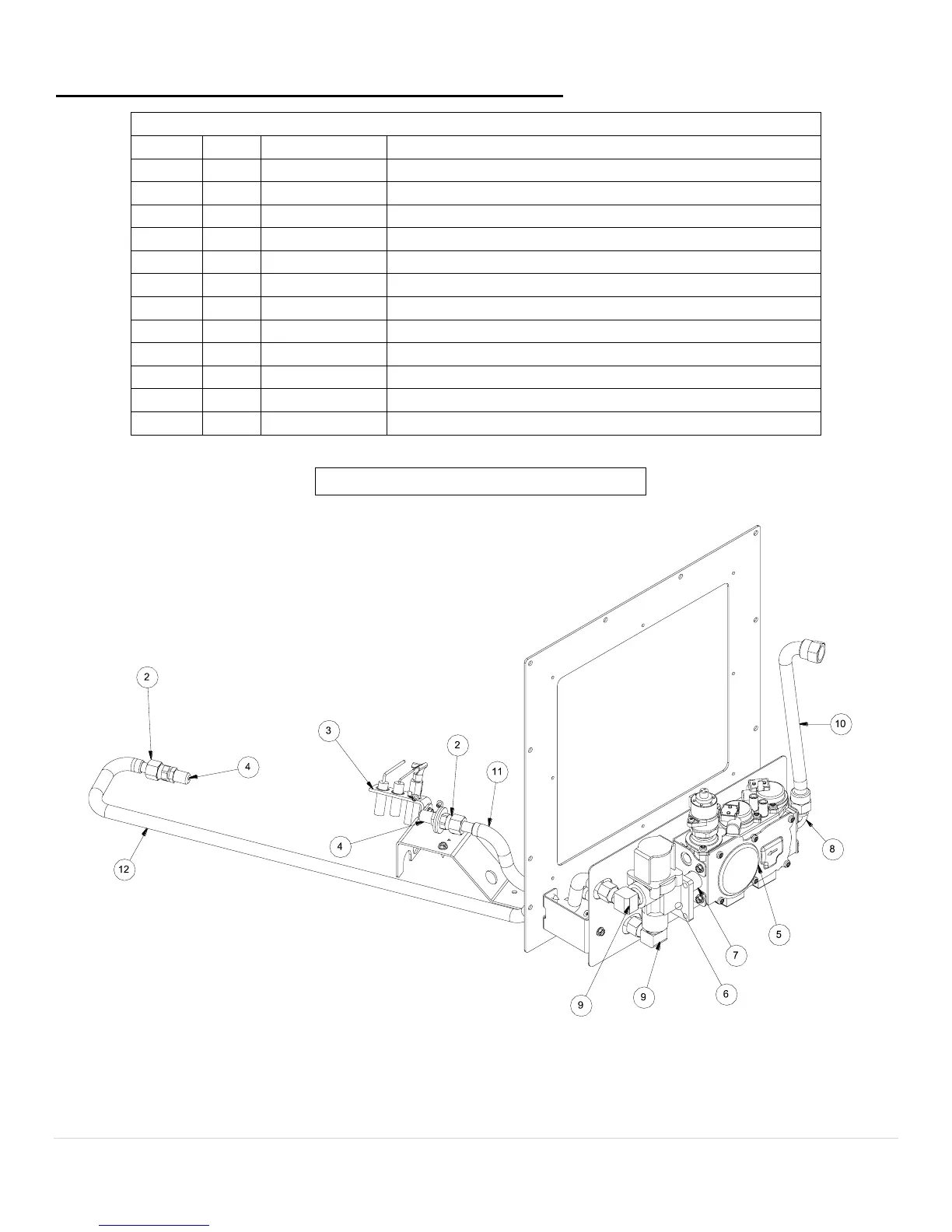

Figure 24: FV-41 VALVE ASSEMBLY
