4.6 UNBOLTING FIREPLACE FROM PALLET
The Fireplace body is bolted to the pallet top surface using 5/16” X 1” Lag Screws in three points. One on each side and one or
more at the rear. Use a 1/2” socket and wrench to remove the lag screws and detach fireplace from the pallet top.

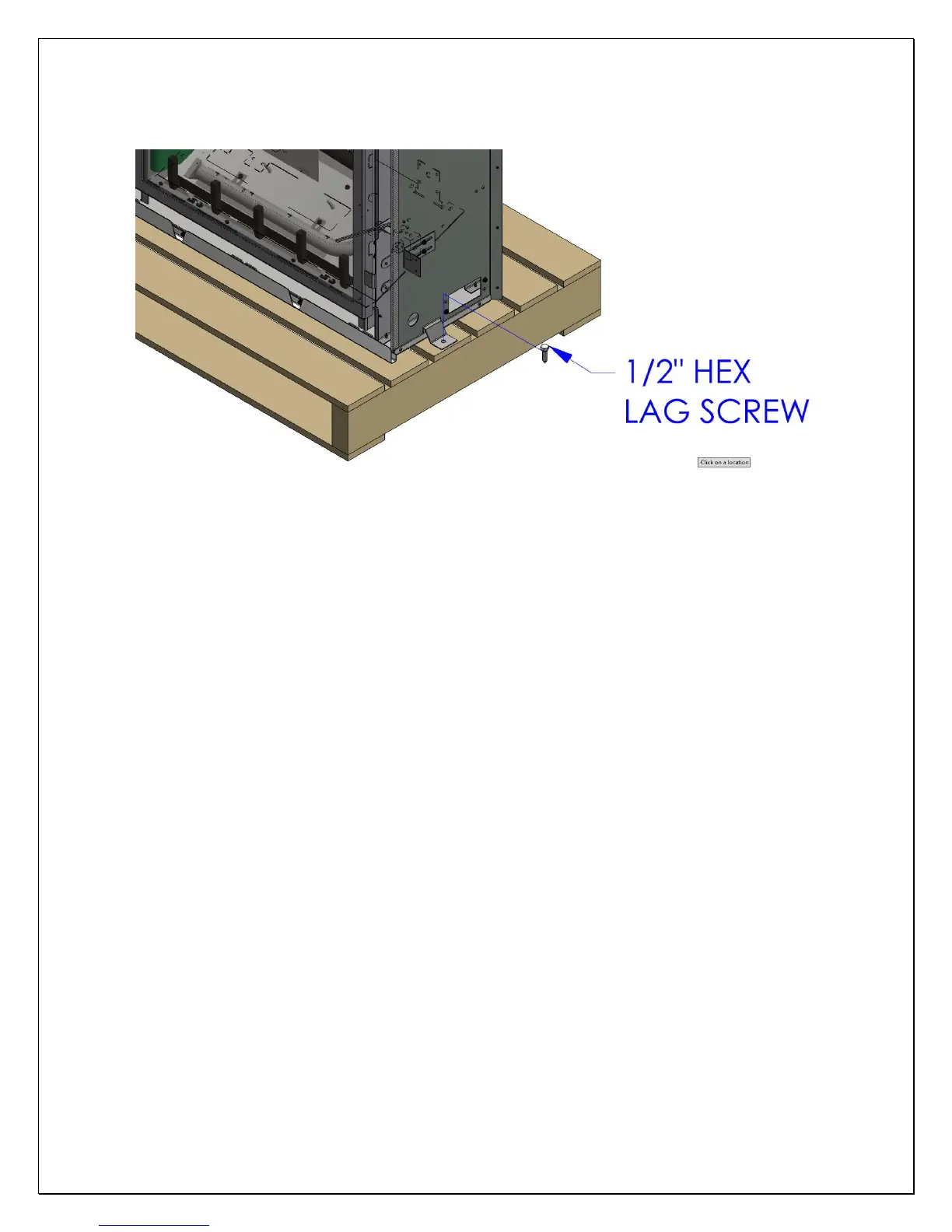

Figure 4-3 Unbolting Unit from Pallet
