85-03-01120 M27 Page 39
3.3 ELECTRICAL TECHNICAL REFERENCES
AC Power Requirements
WARNING: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
For operation of the blowers, this appliance requires 120 VAC, 2 Amp power source. The AC power supply to
this Fireplace must be hot at all times and shall not have a switch installed in it.

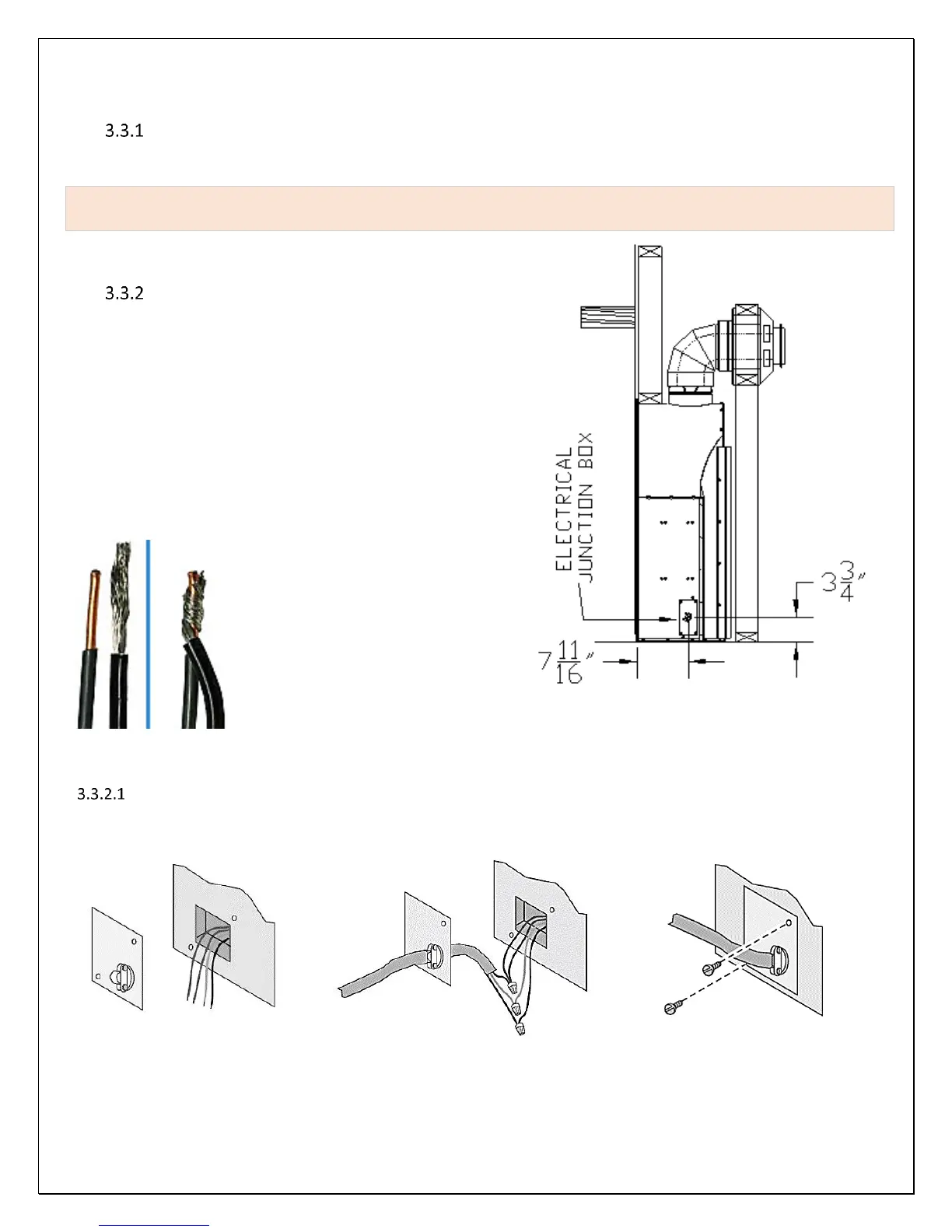

This appliance is equipped with an electrical junction box on the
right side.
Planning for AC Power Connection
On the right-side, you will find an electrical junction box with a
strain relief clamp. To connect AC power to this Fireplace, follow
these steps:
1. Remove the junction box cover plate (secured with two
screws), route the 3-wire end of house power wire cable
through the strain relief in the cover plate.
2. Strip the ends of the house power wires and the three-color
coded wires within the junction box. Connect each color-
coded wire to corresponding colored wires within the
junction box. Use the supplied wire nuts to connect each
wire pair ends.
Note: When connecting two braided
wires using wire nuts, strip both
braided wires ends at least ½” and
twist the two bare ends together
before using wire nuts. When
connecting a braided wire to a solid
copper wire, strip the solid copper
wire end ½” and the braided wire
end ¾”. Twist the braided wire
around the solid copper wire end before applying the wire nut.
3. Place connected wire ends within junction box then close and secure the junction box cover plate.
AC Power Connection Option
