4.10 TO REPLACE DOOR

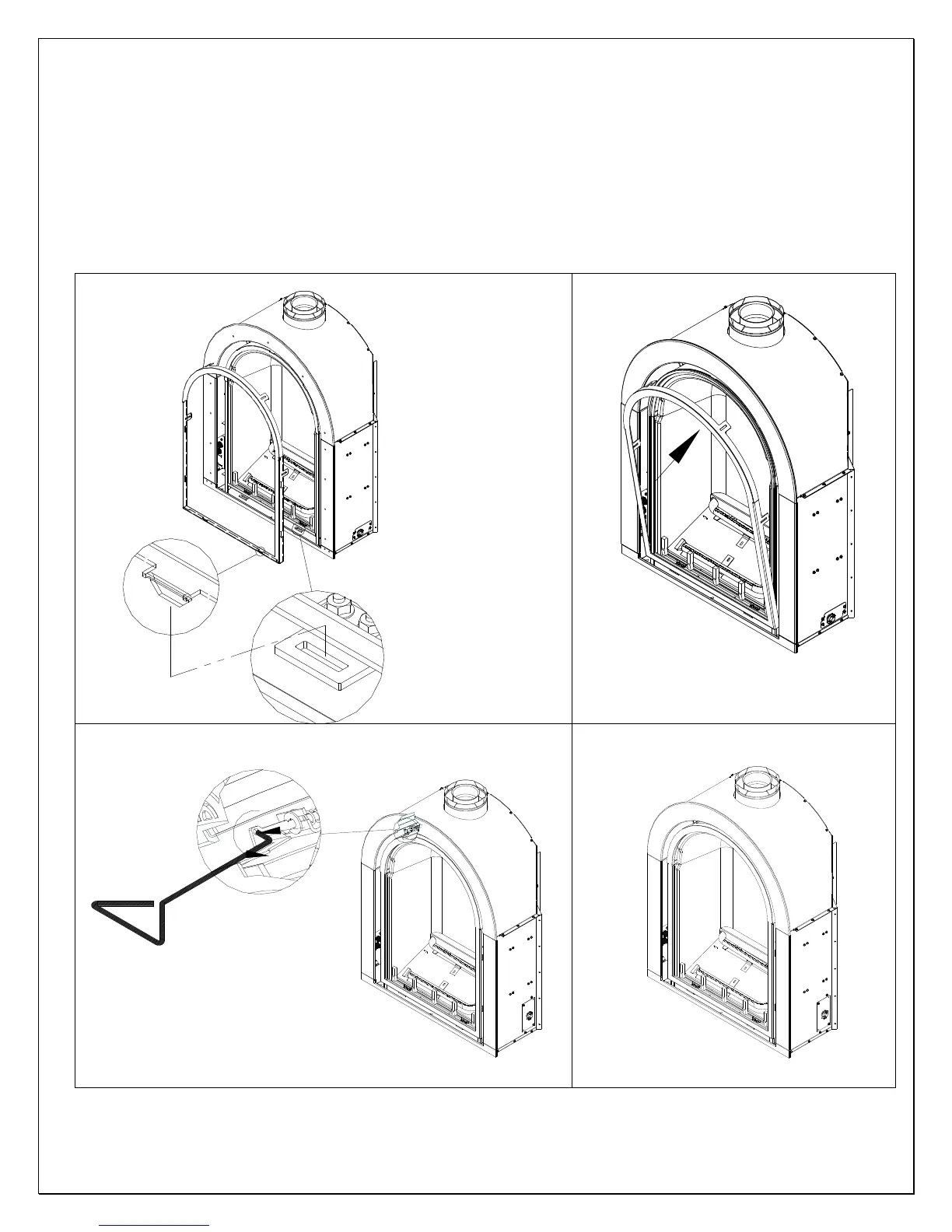

1. Line up the two bottom tabs in glass frame bottom with two slots in the glass clips located at the bottom of firebox.
Insert tabs into slots and center tabs in slots, left to right.
2. Center glass frame over firebox; left to right.
3. After door has been placed into slots, rotate door towards firebox until gasket seal is touching the firebox frame.
4. Use the tool provided to connect the spring latches to the glass frame. Insert tool into hole in spring latch, pull latch
towards you, rotate latch so the hook is facing downward then release latch to hook to door frame. Repeat for all four
latches.
Door is now connected and sealed to unit.
