7. Once Refractory Liner is inside the firebox, push rear surface of refractory liner against rear wall of Firebox, firmly.

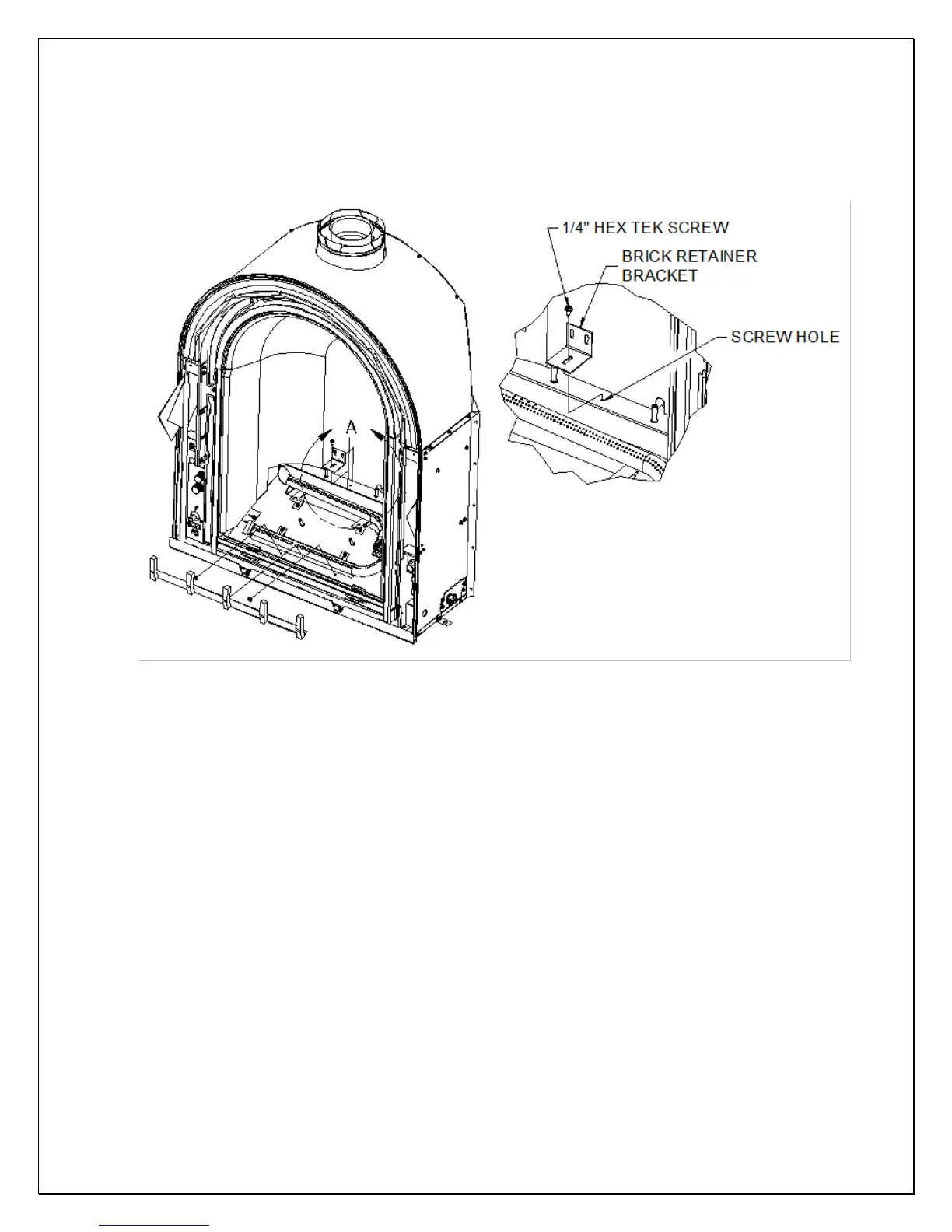

8. Install Refractory Retainer Bracket (supplied with the Owner’s Manual Packet as shown in the diagrams, below. The
Refractory Retainer Bracket must be installed in the same orientation as shown in the detail view below. The
Refractory Retainer Bracket is designed to push the Refractory Liner against the back wall of the firebox. It is critical
that you push the Refractory Liner firmly against the firebox back wall then attach the Refractory Retainer Bracket to
hold the Refractory Liner in that position.
