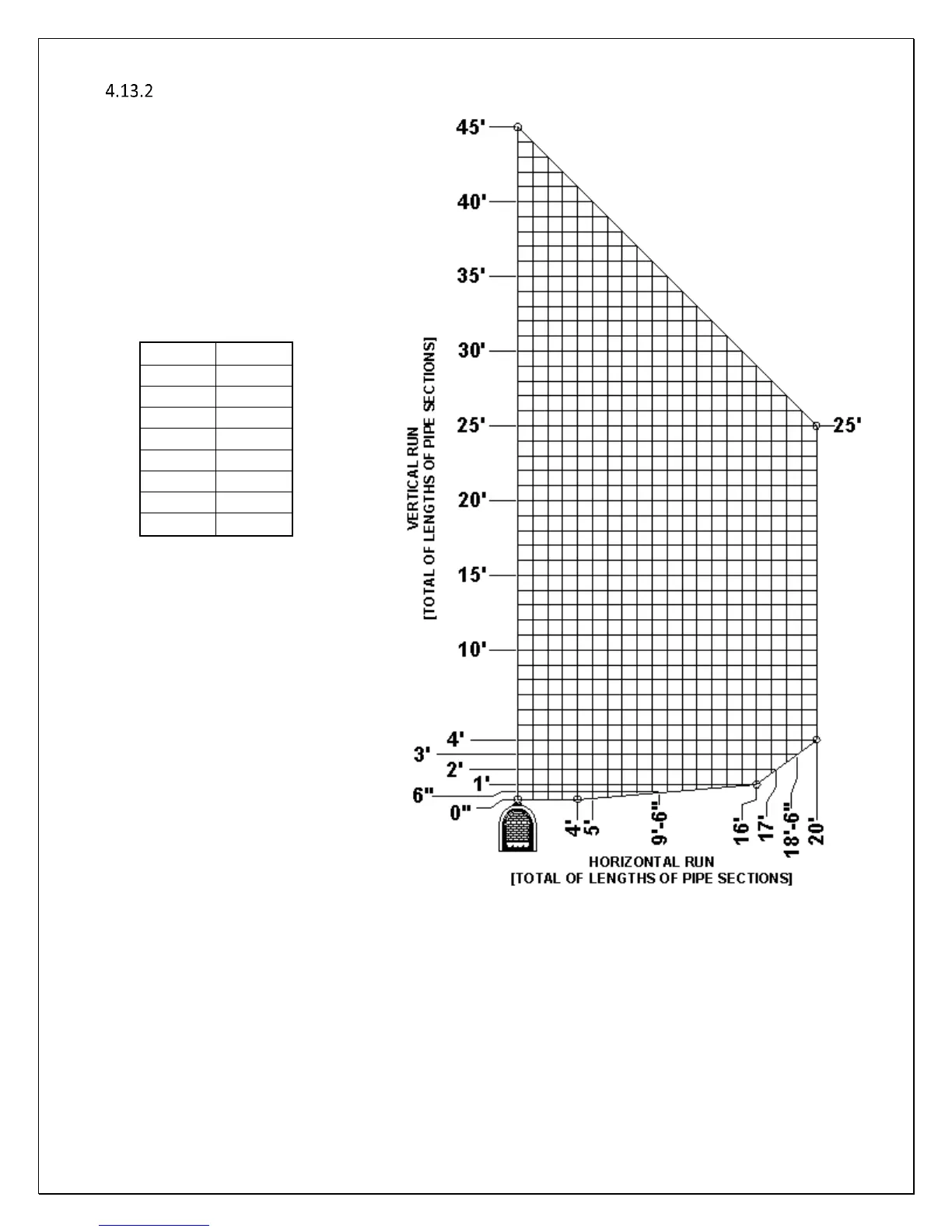

M27 Master Venting Chart
1. 48 inches maximum horizontal pipe run
allowed with a 90
0
-elbow connected
directly to this fireplace’s flue starter collar.
2. Maximum Vertical Run allowed is 45 feet.
3. Maximum Vent System length allowed is 45
feet.
V min
H max
0 in.
48"
6 in.
9'6"
12 in.
16'
18 in.
16'6"
24 in.
17'
30 in.
17'6"
36 in.
18'6"
4 ft. - 25 ft.
20'
