REPLACEMENT PARTS INFORMATION
How to Access Components
The descriptions below show where the main fireplaces components are located and how to access them for service. The
descriptions show how to access the components after the fireplace has been installed. All components are also accessible from
the outside of the unit before the fireplace is installed.
Pilot: The pilot is on the right side of the firebox where the rear and front burner ends come together.
Gas Valve: The main gas valve is located behind the left side surround hinged door. Open the left side surround hinged door to
inspect the gas valve, wiring, and gas inlet connections.
Complete Valve Assembly: To make working on components easier, this fireplace has been designed with the valve, pilot,
shutter boxes, shutter cables and gas lines as part of one assembly that can be removed from the fireplace. To remove the
assembly first remove the inspection panel. This will allow the main gas inlet and wires to the valve, rear burner solenoid and
pilot to be disconnected. After disconnecting the gas line and wires remove the screws from the valve mounting plate (13 on the
left side and two on the floor of the firebox). Then remove the entire assembly from the firebox.
Convection Blowers: The convection blowers are mounted behind the rear wall of the of firebox. To access the convection
blowers, it is necessary to remove firebox liner, logs, burner system and burner airbox and an access cover plate in the firebox
floor. Convection blowers control rheostat is mounted behind hinged right-side surround leg.

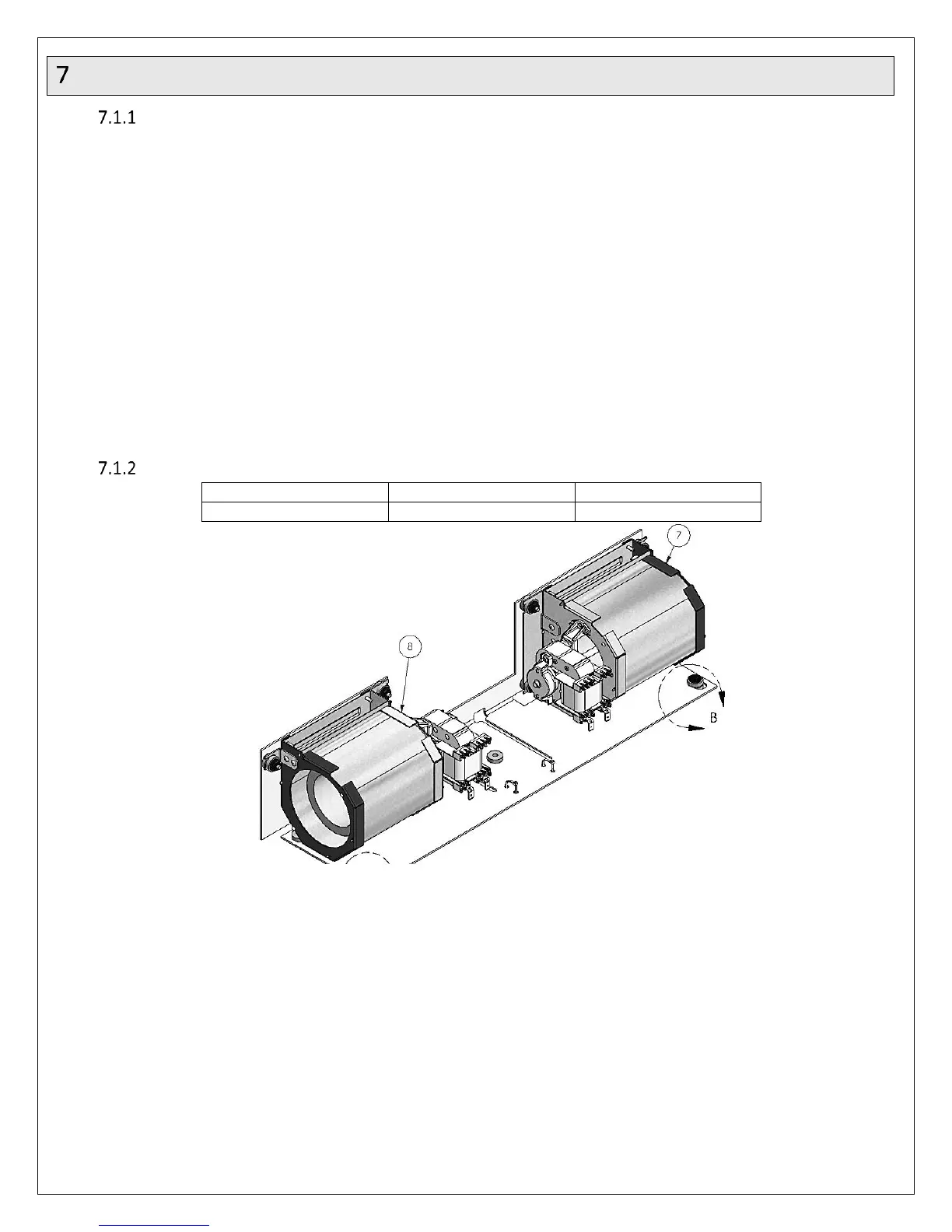

Convection Air Blower System Parts
