Operator's manual – Page 33

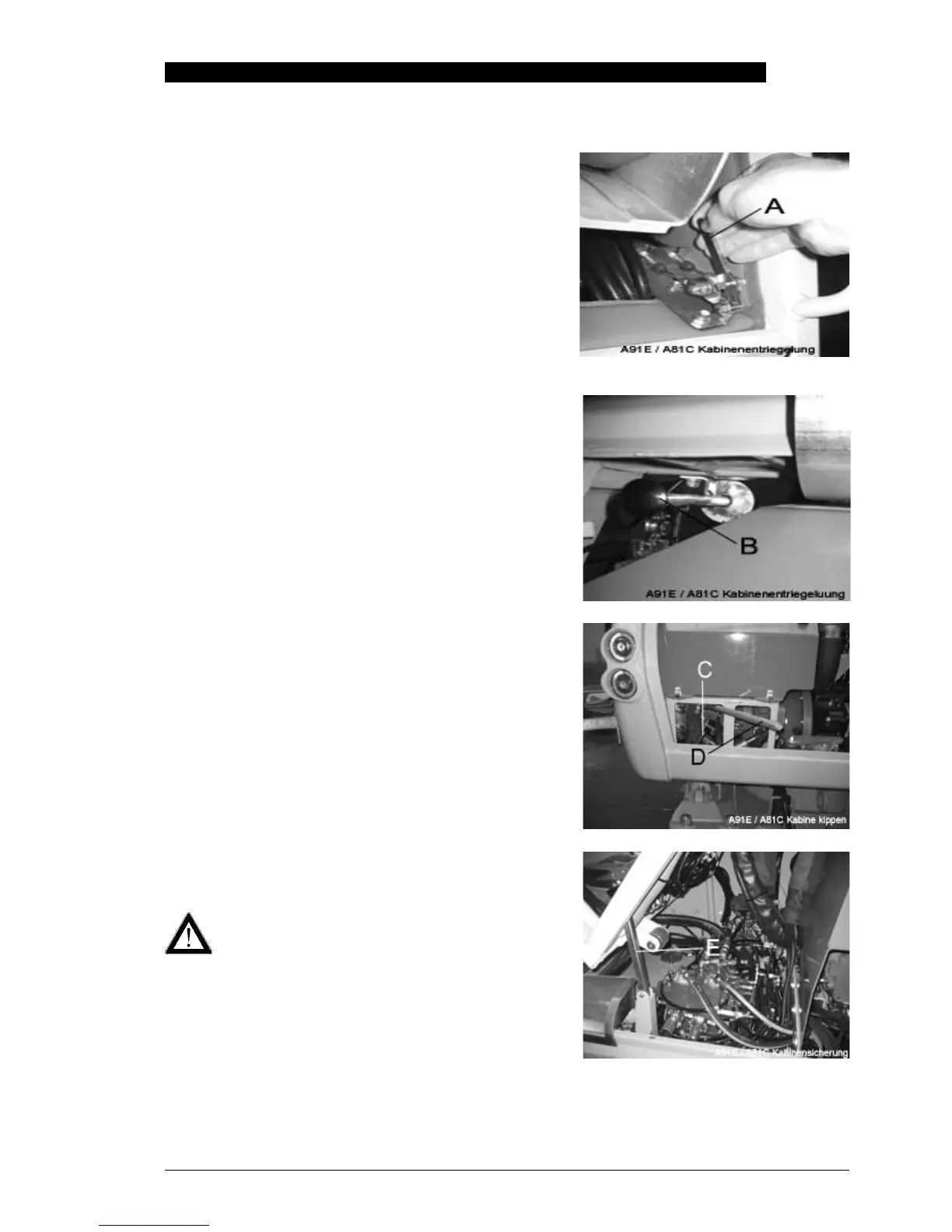

4.6 Tilting cab
The boom must be extended and lowered to the ground
The cab must be released before it can be tilted. Pull forward
the cab release lever (A) located below the driver seat. This
releases the locking pins.
Open the rear cover (see Opening rear cover 1.7.1). Open the
lock with the latch (B). Keep the latch pressed until the cab is
raised out of its location.
Tilt the cab using the hydraulic pump.Ensure that the valve
actuation valve (C) is switched to the right so that the
hydraulic oil is routed into the tilting cylinder.Keep hand lever
(D) pressed until the cab is fully tilted (fully extend cylinder).
When the cab is in the tilted position, the cab fastening
mechanism (E) must be positioned.
Never carry out service or inspection work without the
cab being secured.
Lower and lock the cab after completing work.
