Page 64 – Operator's manual
Menzi Muck A111E
5

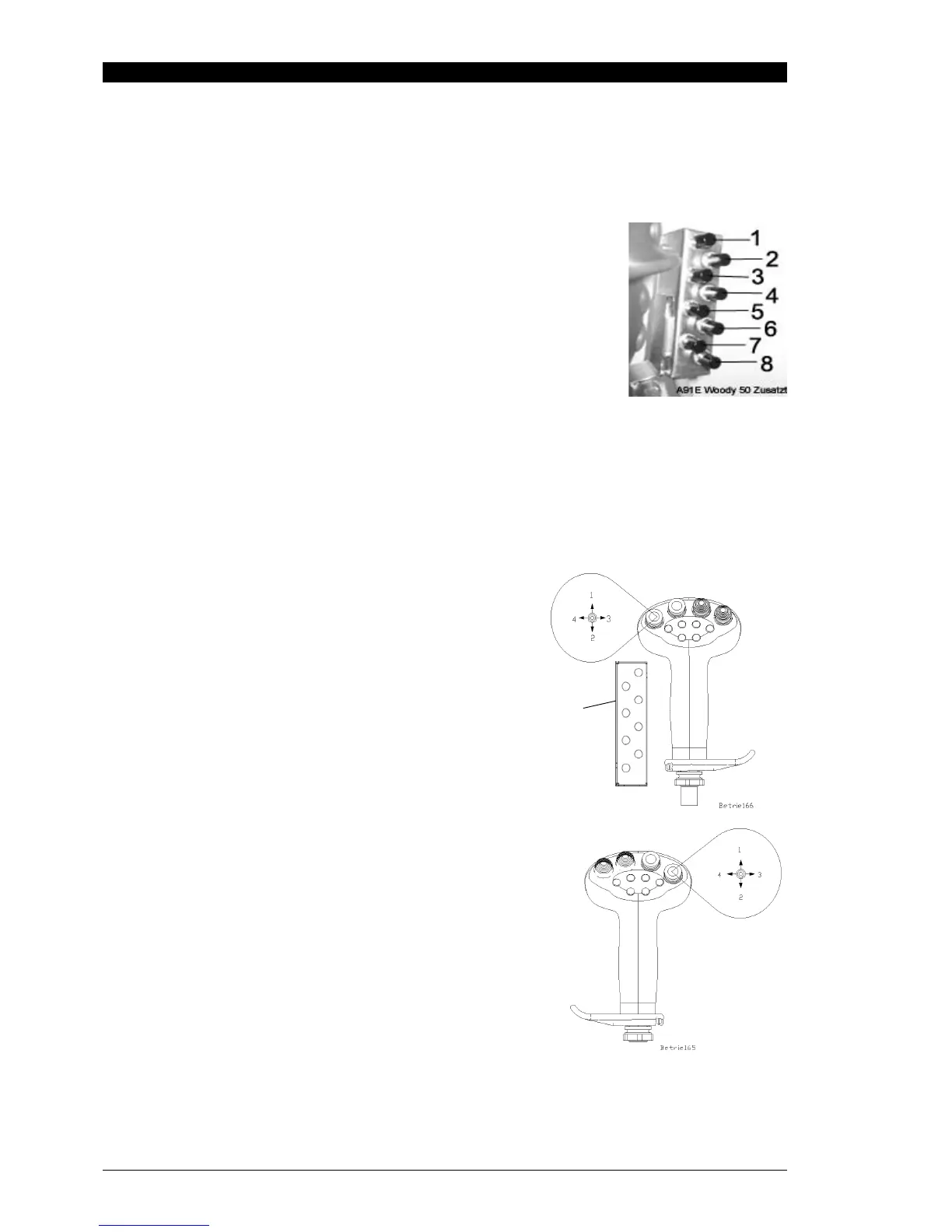

9.4.6 Auxiliary keypad
The auxiliary keypad on the right joystick controls the various length or range functions. Please refer to
the Operating Manual for the Woody Harvester for a precise description of the functions and how they
operate.
1 Length 1 2 Length 2
3 Length 3 4 Length 4
5 Length 5 6 Length 6
7 Length 7 8 Individual branch collection
9.5 Naarva Grip Feller Head
The description covers only joystick operation. Details and further information appear in the Naarva Grip
Feller Head Operating Manual.
The Naarva grip feller head is activated by switching on the Powerline (see Powerline Operation). The
Powerline is set to 180 bar and 140 l/min. As soon as the function is switched, the pump conveys the
required oil quantity. Leave the Powerline switched on during the operation so that a constant pressure is
maintained.
9.5.1 Operating the right joystick
1 Tilt attachment up
2 Tilt attachment down
3 Loading gripper closed
4 Loading gripper open
5 Guillotine cutter
9.5.2 Operating the left joystick
1 Guillotine gripper closed
2 Retaining gripper open
3 Rotator to right
4 Rotator to left
