Page 40 – Operator's manual
Menzi Muck A111E

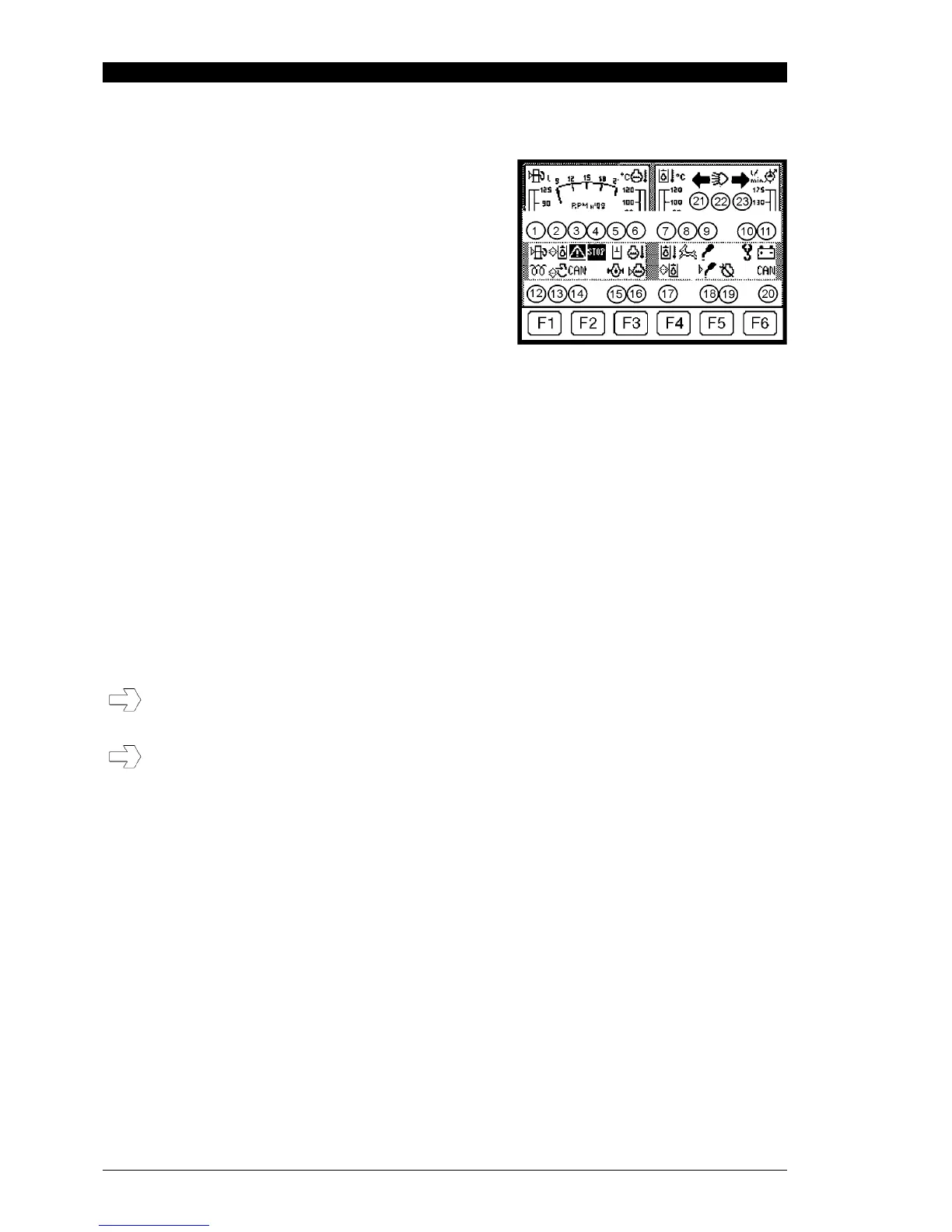

5.2.8 Operating and status displays
1 Fuel reserve indicator (30 litre)
2 Supply pressure filter clogged
3 Engine warning lamp
4 Engine stop lamp
5 Maximum load control (GLR) fault lamp
6 Water temperature
7 Hydraulic oil temperature
8 Drive level
9 Central lubrication unit operating display
10 Overload warning lamp
11 Battery tension
12 Automatic pre-heating Diesel engine
13 Diesel engine air intake filter
14 CAN bus faulty (connection between ECU-engine and GLR/RC4-4/20)
15 Engine oil pressure
16 Cooling water level
17 Hydraulic return filter dirty
18 Central lubrication level
19 Service needed
20 CAN bus faulty (connection between joystick and chassis command)
21 Left warning lamp
22 Working headlamps indicator lamp
23 Right warning lamp
The operation and status display symbols only appear when they are active.
Note for machines with central lubrication: after filling the grease container, this must be
confirmed using the central lubrication control. To do so, please read the operating manual for
the central lubrication control.
