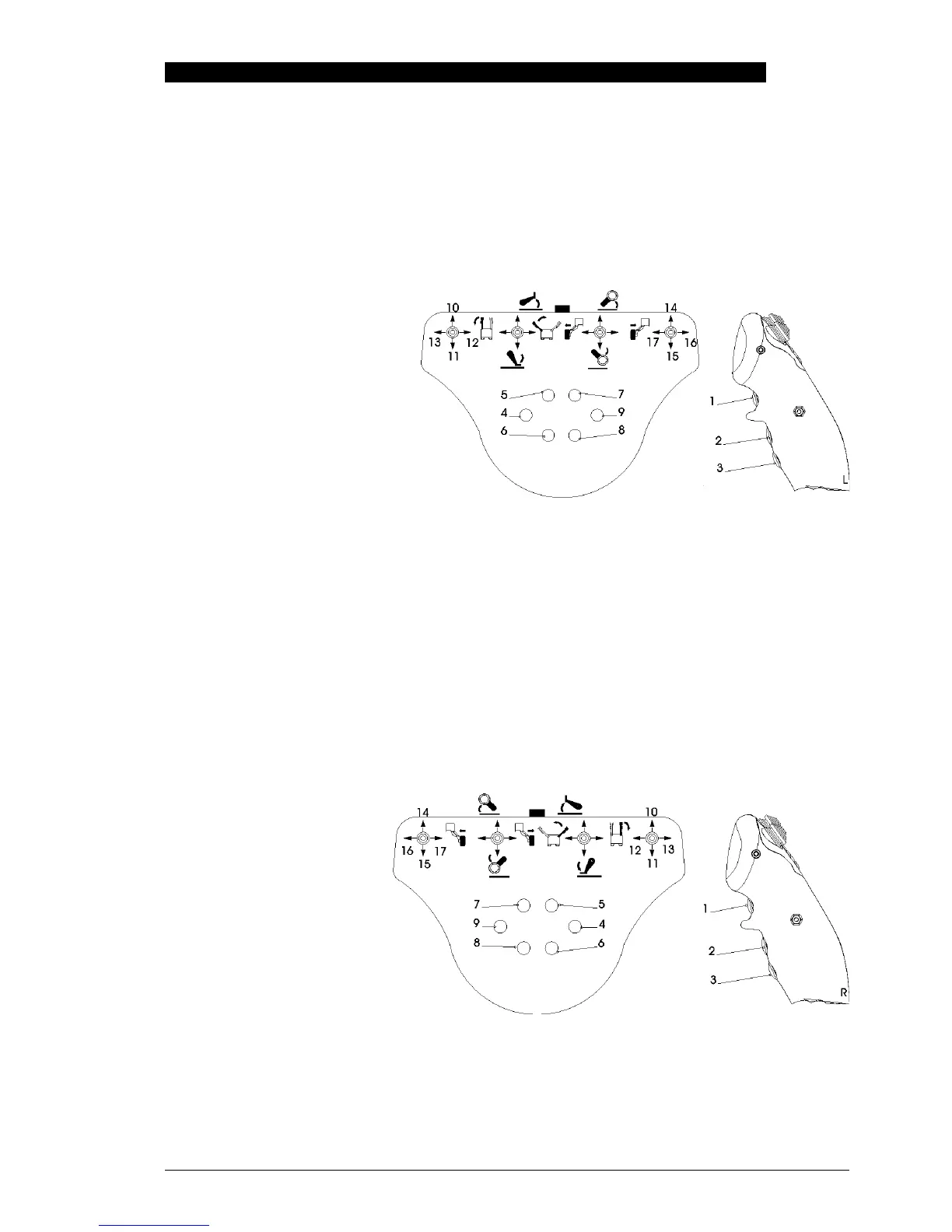

9.4.4 Operating the Woody 50 left joystick
Special joystick assignment for forestry equipment with the Woody 50 harvester head.
1 reserve
2 windscreen wiper interval
3 3. Control circuit 40L/min / electric winch (optional)
4 hydraulic auxiliary connections 80L/min
5 Powerline (Option)
6 Hydraulic quick changer
(optional)
7 Feed unit up / down
8 Position head / floating position
9 Automatic drop position
10 Mountain pads up (option)
11 Mountain pads down (option)
12 Mountain pads 2 up (option)
13 Mountain pads 2 down (option)
14 Feed slow
15 Roller open / closed
16 Close grab
17 Open grab
9.4.5 Operating the Woody 50 right joystick
Special joystick assignment for forestry equipment with the Woody 50 harvester head.
1 Bucket / steering switchover
2 Horn / hydraulic override
3 3. Control circuit 40L/min / electric winch (optional)
4 Hydraulic auxiliary connection 80L/min
5 Gripper pressure reducer
6 Idling reset
7 Saw
8 Fix head / floating position
9 Auto on / off
10 Mountain pads up (option)
11 Mountain pads down (option)
12 Mountain pads up
13 Mountain pads down
14 Roller feed forward
15 Roller feed back
16 Turn rotator to left
