Operator's manual – Page 95

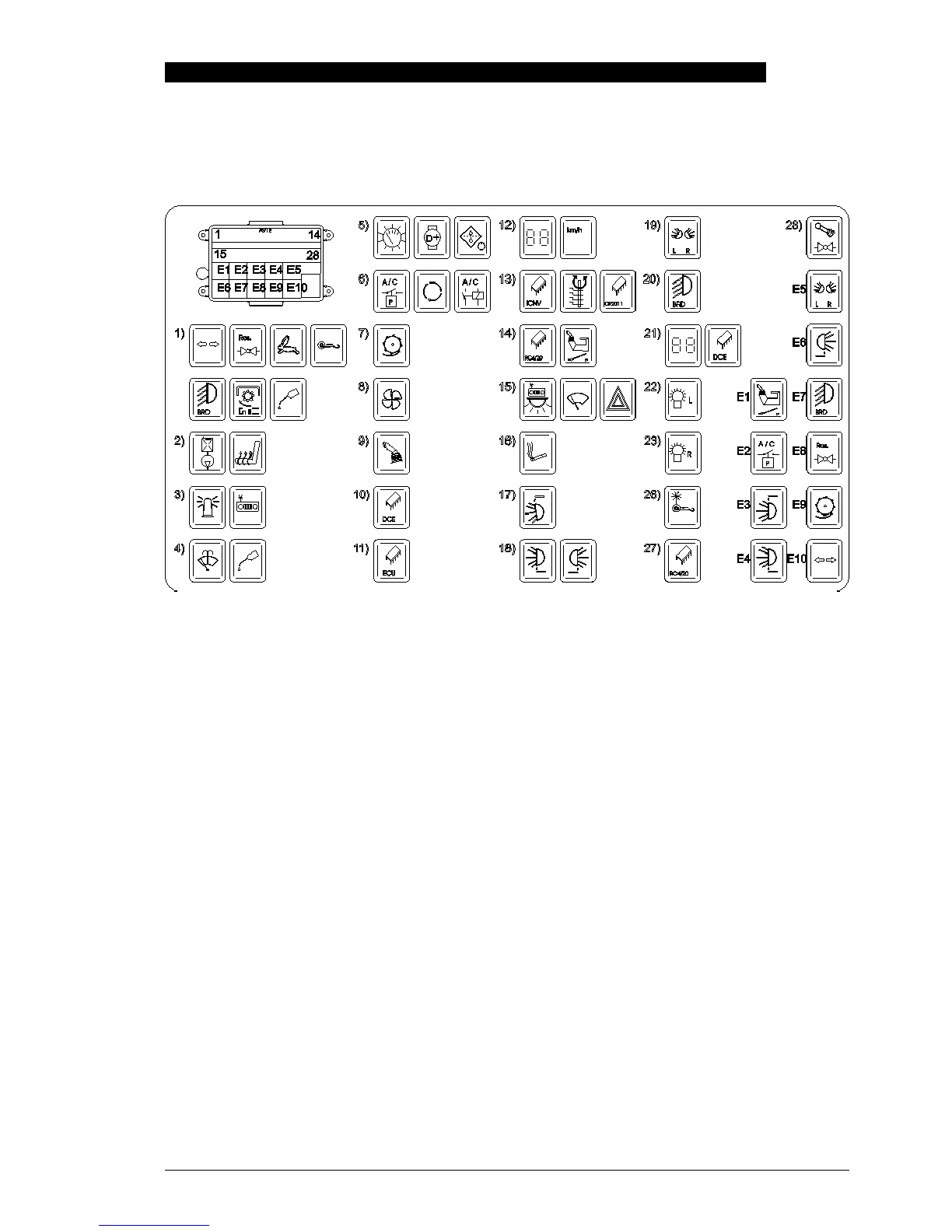

14.2 Fuses
The main fuse for protecting the electrical components is located below the rear cover to the left on the
hydraulic oil tank mounting.
No. Ampère Function
1 15 A Warning lights, High speed gear, Reserve valves, winch, Finemode
2 20 A Diesel filling pump, operator's seat
3 15 A Turning light, Radio
4 15 A Intervall wiper system, central lubrication system
5 7.5 A Instrument lighting
6 15 A A / C compressor coupling, circulating air cover
30 A Air-conditioning unit USA
7 15 A Harvester control, options
8 10 A Heater fan gages 1 - 3
9 1 A Joystick supply left / right
10 10 A DIGSY Compact
11 10 A ECU
12 2 A Display, driving foot pedal
13 15 A ICN-V-modul, auxiliary moduls CR2011
14 2 A Armrest switch, GLR
15 15 A Inner lights, Wiper engine forest verion, warning lights
16 20 A Cigarette lighter
17 20 A Front working headlights below, forest version
18 15 A Front and rear working headlights above
25 A Front and rear working headlights above, forest version
19 20 A Side working headlights, forest version
20 20 A Headlight low beam
21 3 A Connection 30 on display (CGM) and DIGSY Compact
22 5 A Parking light left
