Menzi Muck A111 - Boom; Mountain Stabilizer

Operator's manual – Page 73

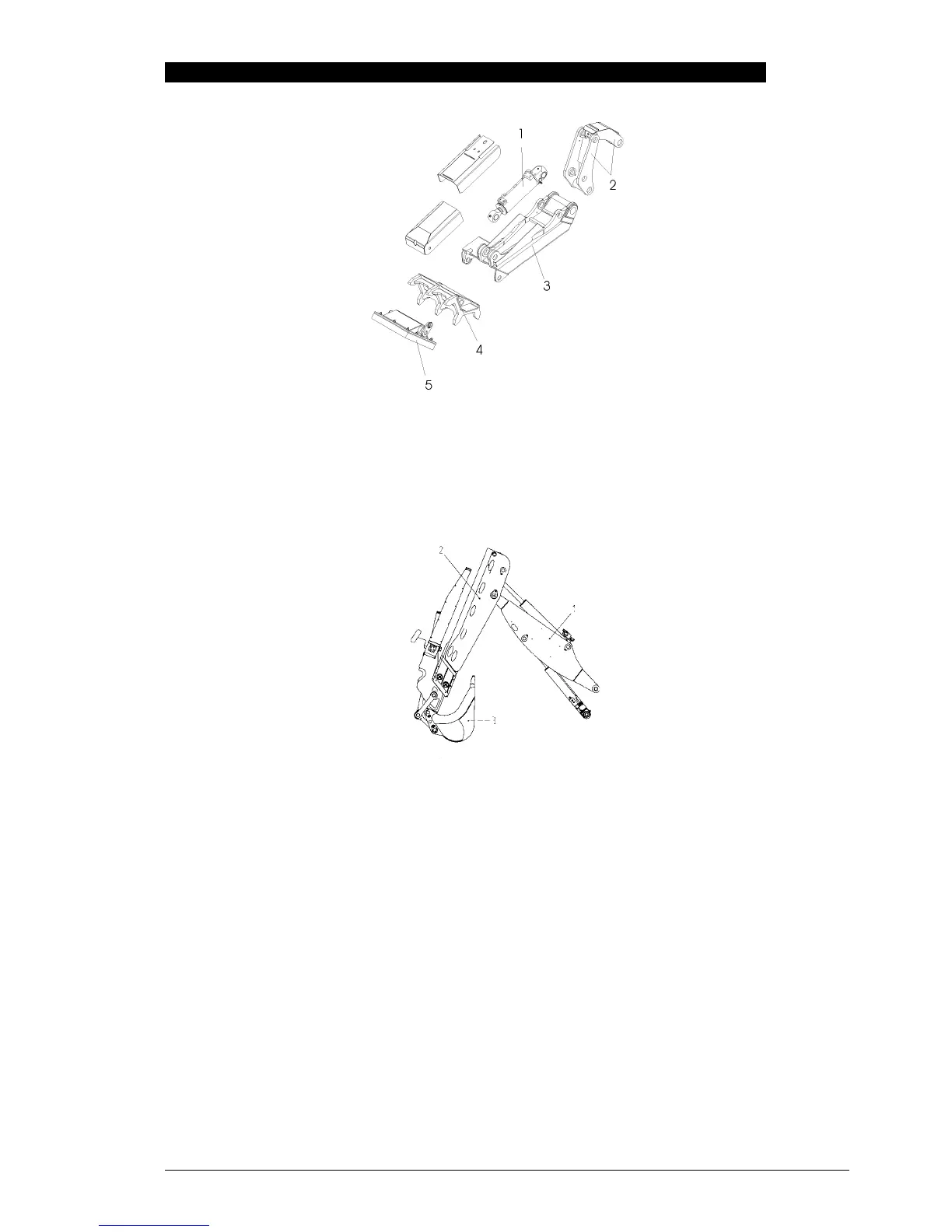

11.4.5 Mountain stabilizer
1 - 5 Mountain stabilizer cpl, 2 of 750 kg
1 Cylindre, 2 of 80 kg
2 Deflection mechanism, 2 of 95 kg
3 Support mountain stabilizer, 2 of 220 kg
4 Steel pad, 2 of 100 kg
5 Rubber pad, 2 of 100 kg
11.4.6 Boom
1 + 2 Boom assembly without bucket 2000 kg
1 Rear bucket with boom and jib cylinders 660 kg
Boom cylinder 140 kg
Jib cylinder 140 kg
2 Telescopic arm assembly with telescope,
and bucket cylinders, shears and thrust rod 1320 kg
3 Bucket
