Operator's manual – Page 35

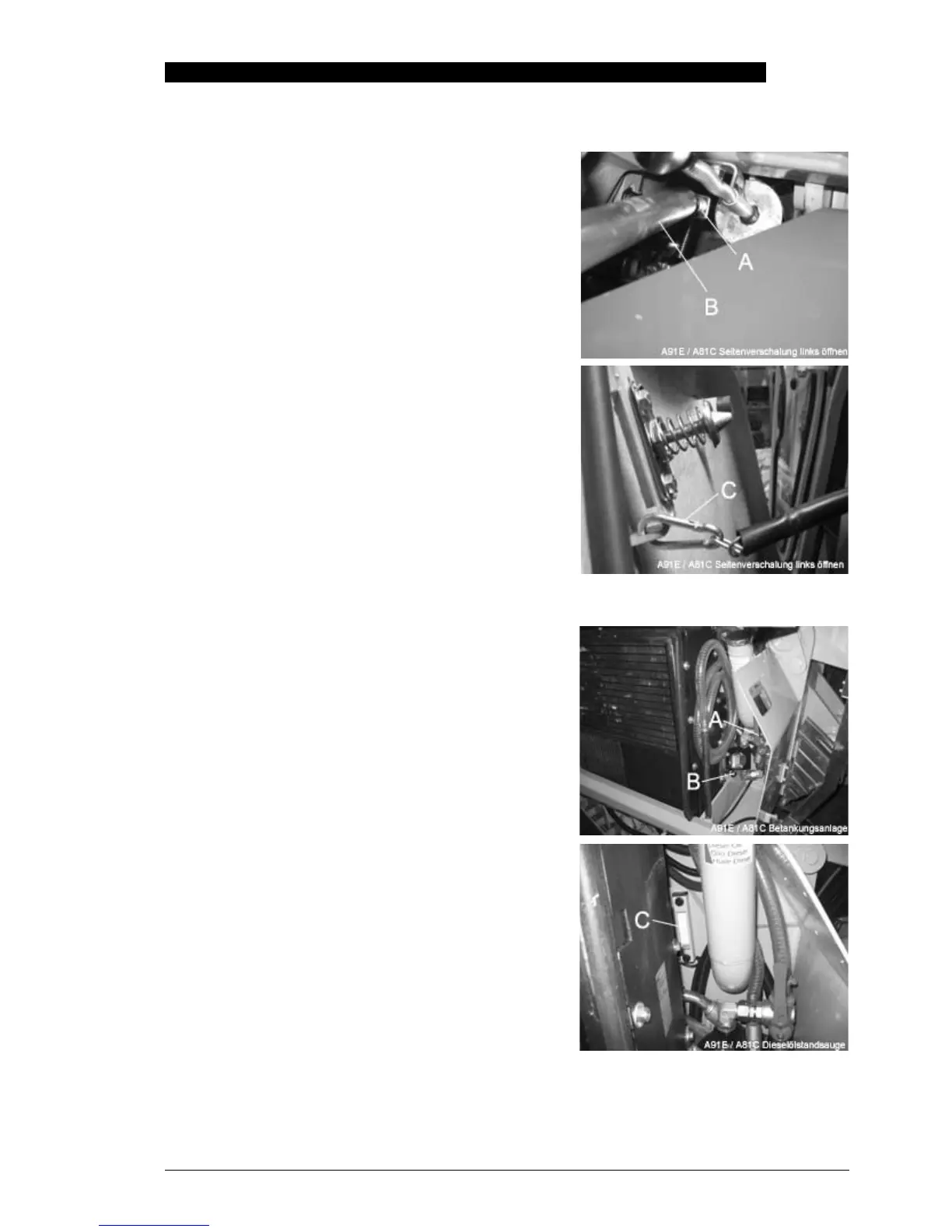

4.7.3 Opening and closing the left rear cover
1 The lockable rear cover must be opened before the side
cover can be opened.
2 Located on the left side above the hydraulic oil tank is a
lock (A), which can be used to open the side cover. The
lock can be released by pushing hand lever (B) (tilt cab.
3 Release side cover fastening mechanism (V) and lift away
the cover.
4 Close the side cover: insert the side cover into the guide
slots, leave the cover in contact with the centre section
and push until it engages in the lock.
4.8 Refuelling system
4.8.1 General information
The standard refuelling system used to fill the diesel tank in
the upper vehicle section and the reserve tank located in the
chassis. The system can be reached and operated easily by
the operator by opening the rear engine cover.
4.8.2 Filling upper diesel tank
In the basic position the suction hose is stored rolled-up on
the diesel tank and sealed off against the penetration of dirt
at one end with an end piece.
1. Pull suction hose off end piece, unroll and guide into
empty container
2. Set switchover cock (A) to vertical position
3. Switch on electric filling pump with switch (B) on left
4. Monitor fill level of diesel tank with attached oil level eye
(C)
