Operator's manual – Page 71

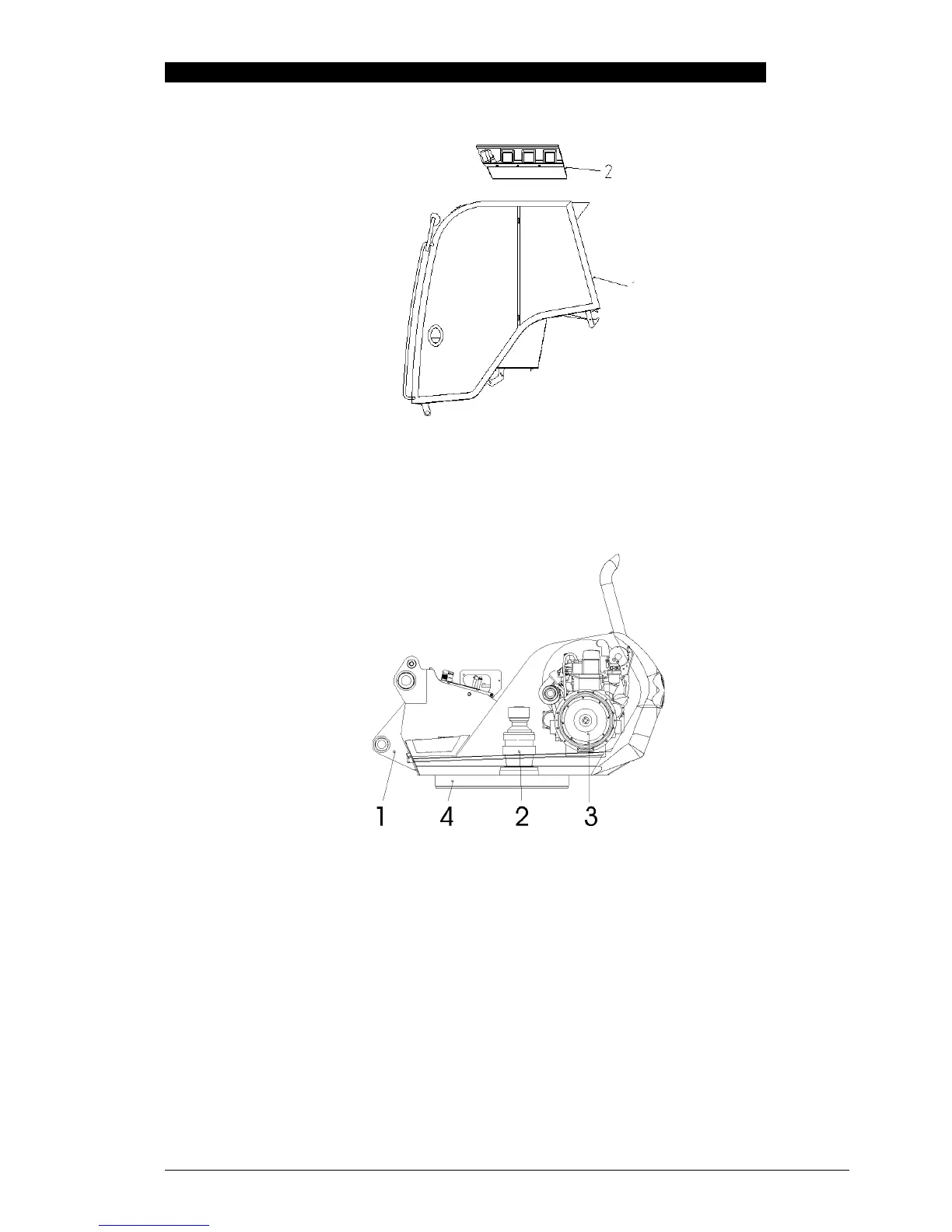

11.4 Component mass
11.4.1 Cab
1 + 2 Cab assembly, complete with lights bar 575 kg
1 Cab of construction machine complete with seat, fittings, etc. 470 kg
cab of forestry machine complete with seat, fittings, etc. 490 kg
2 Lights bar including headlights 85 kg
11.4.2 Center section
1-4 Center section, complete without hydraulic fluid and diesel oil,
radiator incl. engine, radiator, diesel tank, valves and engine housing 2000 kg
1 Center section including slewing ring and transmission 1075 kg
2 Slewing gear with motor 100 kg
3 Diesel engine, 4-cylinder complete with hydraulic pumps (incl Powerline)
and distributor gear 810 kg
4 Ball slewing ring 100 kg
Side panels, engine cowl and diesel tank 140 kg
Hydraulic fluid depending on fluid level approx. 200 kg
