for

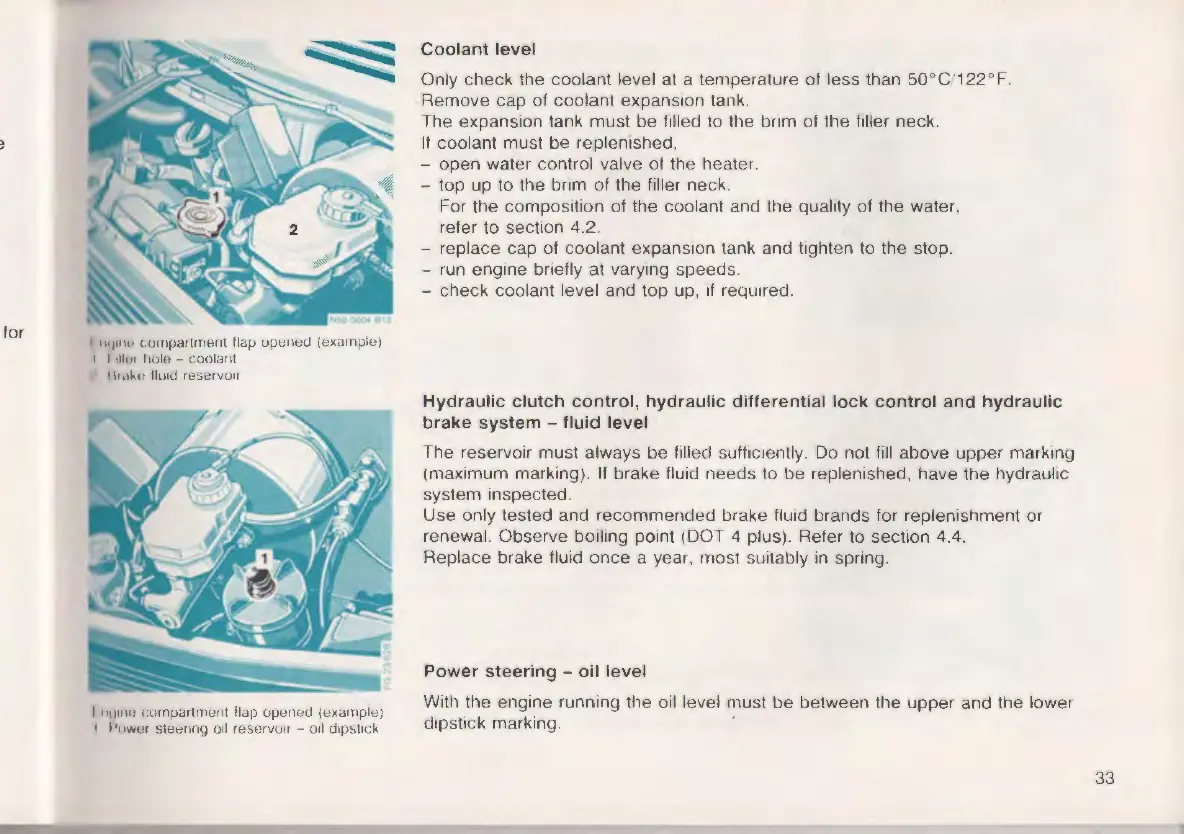

I 11111111 1.0111partrnent llap upuned (t:xamplc)
t I ill,., hole - coolant
1 h. ,~ 11 llurd reservoir
,,11111• compar tment llap opened (example)
t I 111wur steering orl reservoir - o,I dipstick
Coolant level
Only check the coo lant level at a temperatur e of less than 50°C1122°F.
Remove cap of coo lant expans ion tank.
The expansio n tank must be filled to the brim of the filler neck.
If coolant must be replenished ,
- open water control valve of the heater.
- top up to the brim of the filler neck.
For the composition of the coolant and the quality of the water,
refer to section 4.2.
- replace cap of coo lant expansion tank and tighten to the stop.
- run engine briefly at varying speeds .
- check coo lant level and top up, if required.
Hydraulic clutch control, hydraulic differential lock control and hydraulic
brake system - fluid level
The reservoir must always be filled sufficiently. Do not fill above upper marking
(maximum marking ).
If brake fluid needs to be replenished, have the hydraul ic
system inspected .
Use only tested and recomm ended brake fluid brands for replenishment or
renewal. Observe boiling point (DOT 4 plus). Refer to section 4.4.
Replace brake fluid once a year, most suitably in spring.
Power steering - oil level
With the engine running the oil level must be between the upper and the lower
dipstick marking. ·
33
