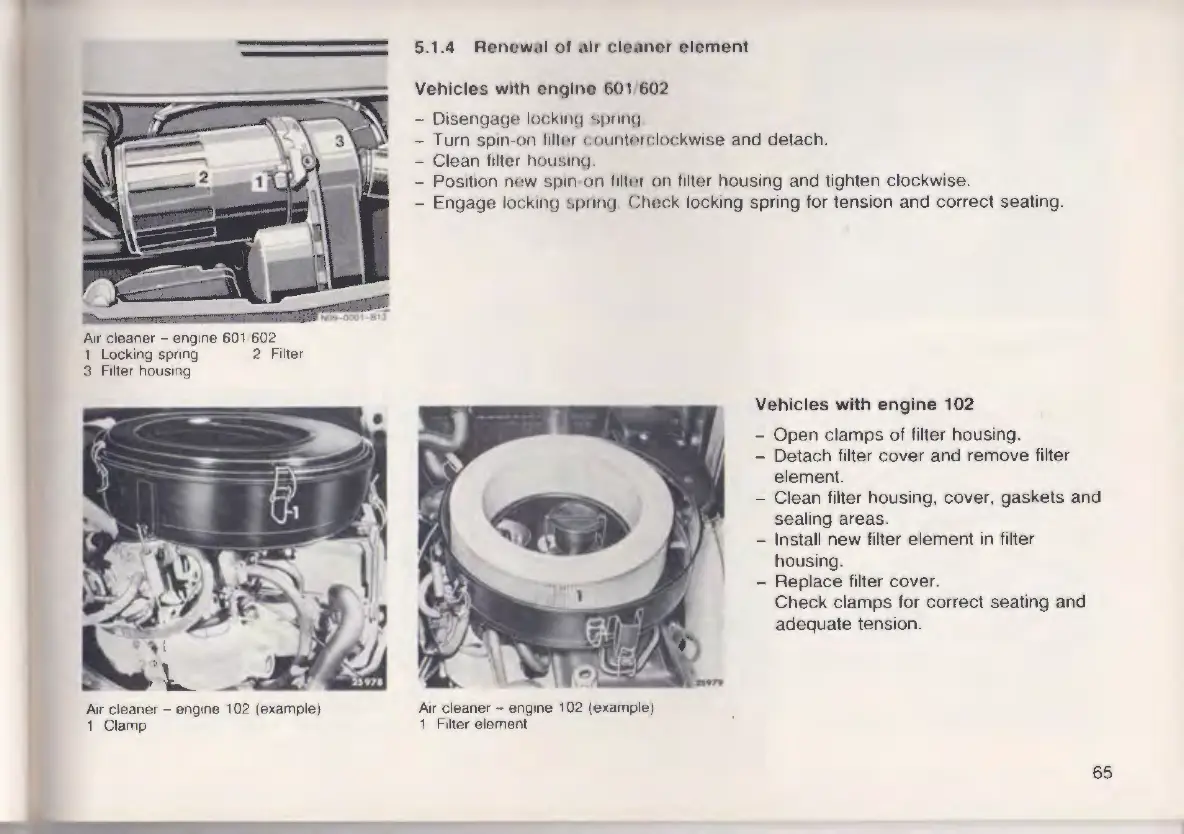

Air cleaner - engine 601 602
1 Locking
spring 2 Filter
3 Filter housing
Air cleaner
- engine 102 (example)
1 Clamp
5.1.4 Renowol of .,Ir cloonor clement
Vehlcles with onglno 601 602
- Disengaqe lork1nq •,p1111q
- Turn spin on liltor rou11tnrclockw1se and detach .
- Clean filter hou•,111q
- Position new
sp111 011 11111'1 on filter housing and tighten clockwise.
- Engage locking sp1
lllCJ Cl1ock locking spring for tension and correct seating.
Vehicles with engine 102
- Open clamps of filter housing.
- Detach filter cover and remove filter
element.
- Clean filter housing , cover, gaskets and
sealing areas .
Air cleaner - engine 102 (example)
1 Filter element
- Install new filter element in filter
housing.
- Replace filter cover.
Check clamps for correct seating and
adequate tension .
