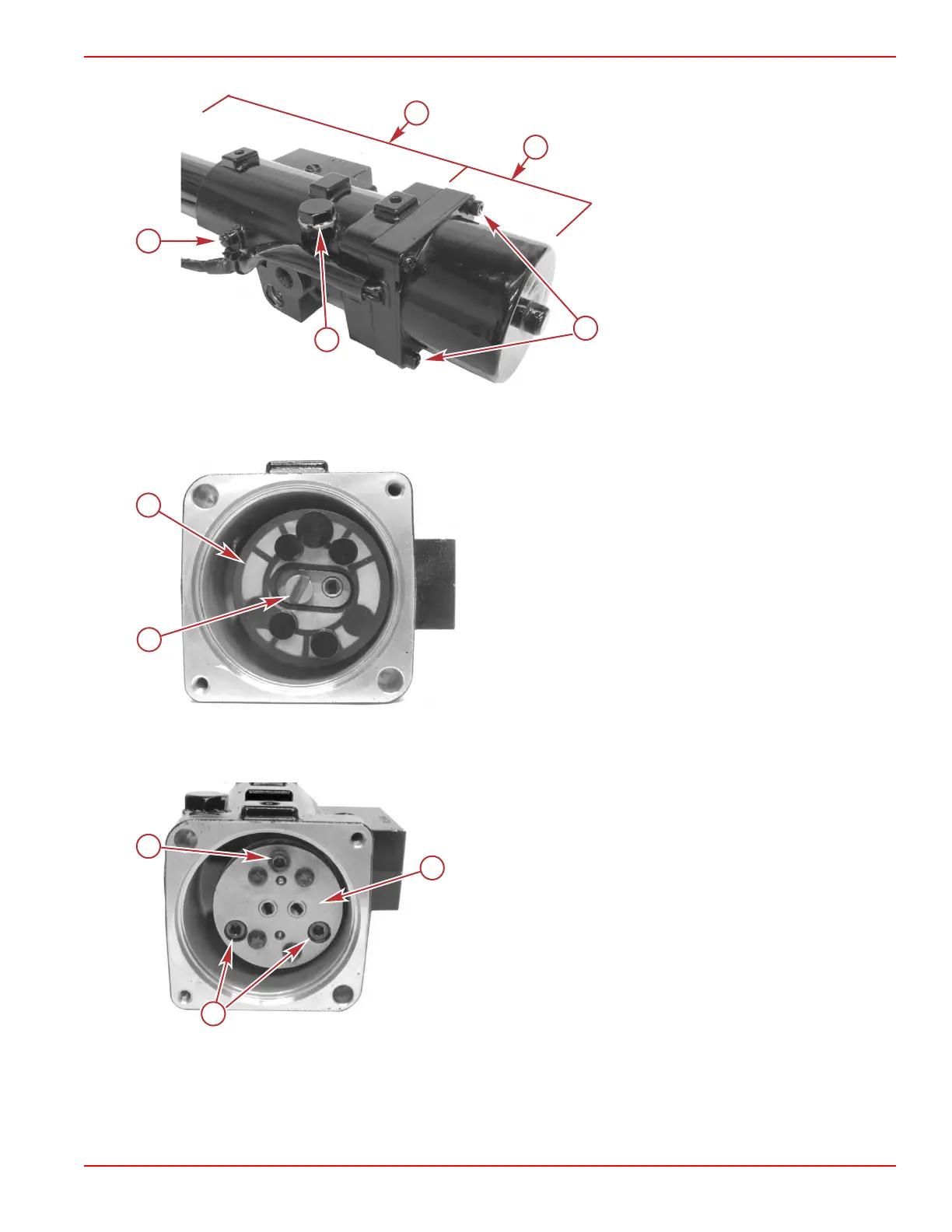

7. Separate the motor assembly from the power tilt pump and cylinder assembly.
a - Wire harness retaining screw
b - Power tilt pump and cylinder assembly
c - Motor assembly
d - 4 mm internal hex screw
e - Reservoir fill plug
8. Remove the pump/motor coupling.
9.
Remove the pump filter from the power tilt assembly.
a - Filter
b - Pump/motor coupling
NOTE: Relief valve components are held in place by the power tilt pump. When removing the pump, ensure that these
components are not lost.
10. Remove the three internal hex screws securing the power tilt pump to the power tilt assembly.
a - Power tilt pump
b - Internal hex screw (5 mm x 20)
c - Internal hex screw (5 mm x 25)
