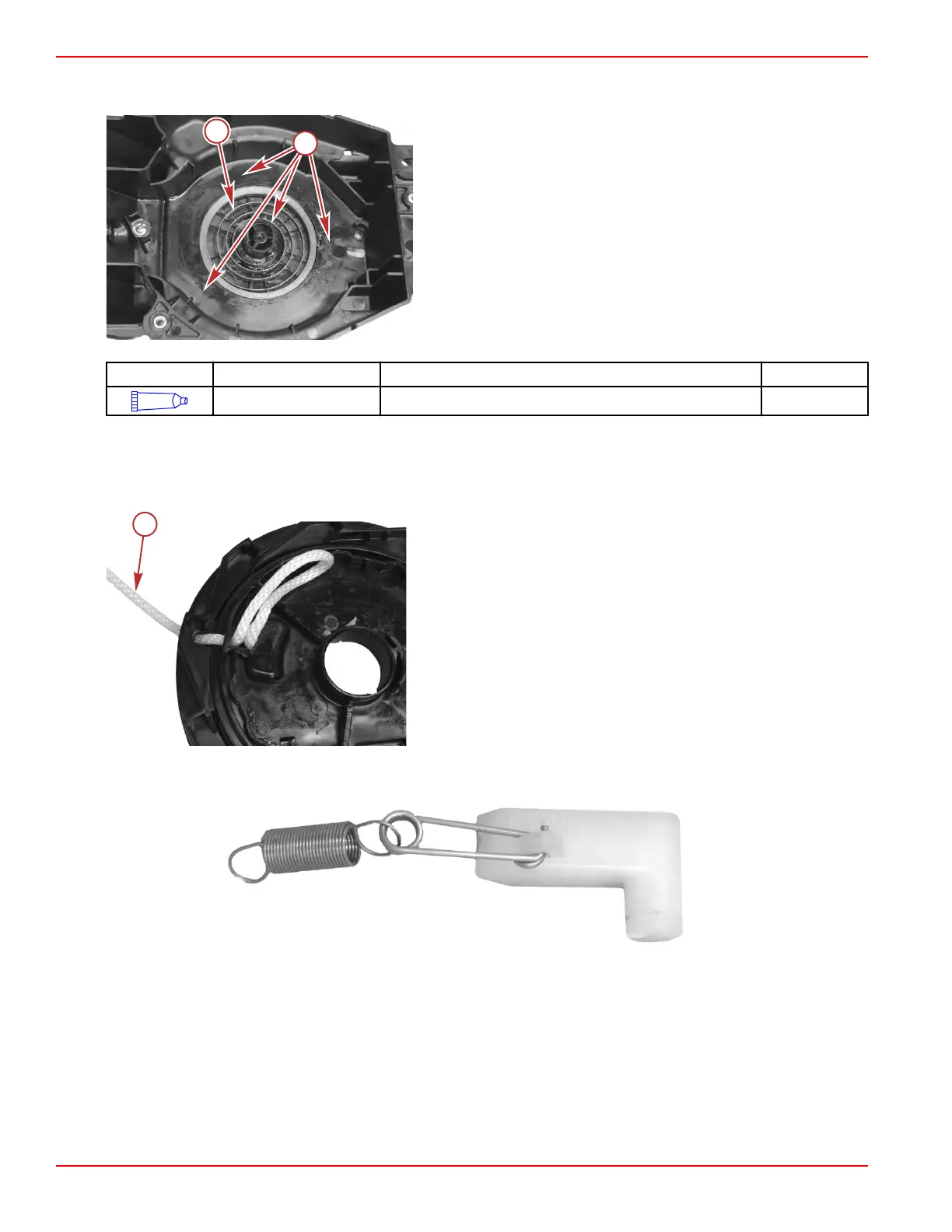

1. Using 2‑4‑C with PTFE, lubricate the area of the recoil housing where the recoil spring is located.
2.
Install the recoil spring into the recoil housing.
a - Recoil spring
b - Lubricate with 2‑4‑C with PTFE
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Recoil housing 92-802859A 1
3. Attach the recoil rope to the sheave:
a.
Tie a knot on one side of the recoil rope and insert the recoil rope through the sheave.
b. Thread the recoil rope through the sheave as shown.
c. Pull the recoil rope tight in the sheave.
a - To recoil handle
4. Assemble and install the starter pawl:
a.
Assemble the starter pawl as shown.
b. Lubricate the starter pawl bore on the sheave with 2‑4‑C with PTFE.
c.
Install the starter pawl return spring onto the sheave.
Recoil Starter
