CHARGING & STARTING SYSTEM
Page 2B-18 90-883728 JULY 2001
Current Output Troubleshooting
Current Output is Low Battery Cables are loose or corroded
Defective Battery (Open Circuit)
Defective Alternator
Current Output is High Accessories turned on
Defective Battery (Internal Short)
Defective Alternator
Repair
Removal
1. Remove top cowling.
2. Disconnect battery cables from battery.
3. Disconnect wiring harness from alternator.
4. Remove belt from alternator.
5. Remove attaching bolts.
58782
a
b
a

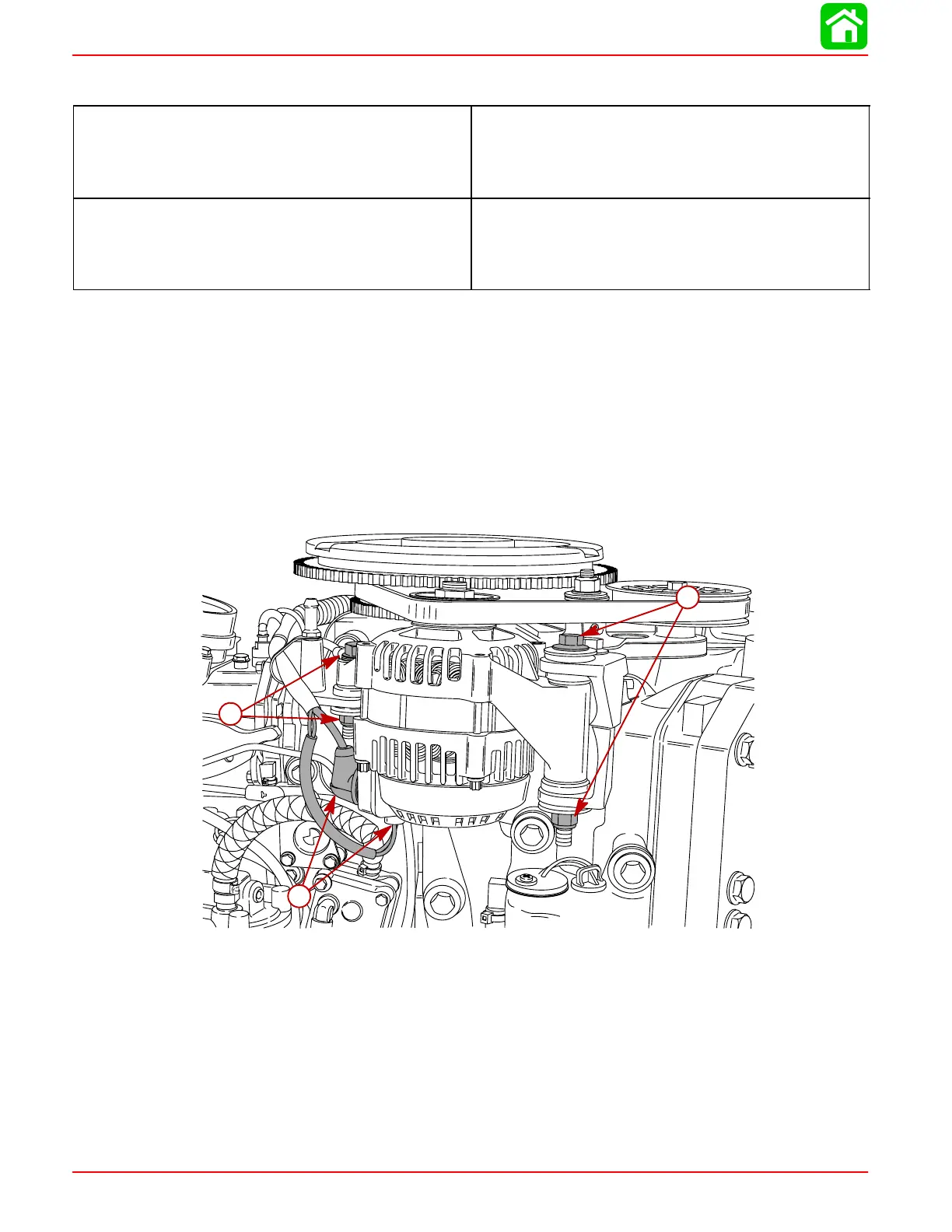

a-Attaching Bolt b-Harnesses
