Mercury 200 EFI

POWER TRIM
Page 5B-44 90-883728 JULY 2001
Reassembly
IMPORTANT: Components must be clean. Any debris in power trim system can
cause system to malfunction.
1. Install armature into end cap/brush card assembly.
53779
a
b
c
53784
d
a
b
c
d

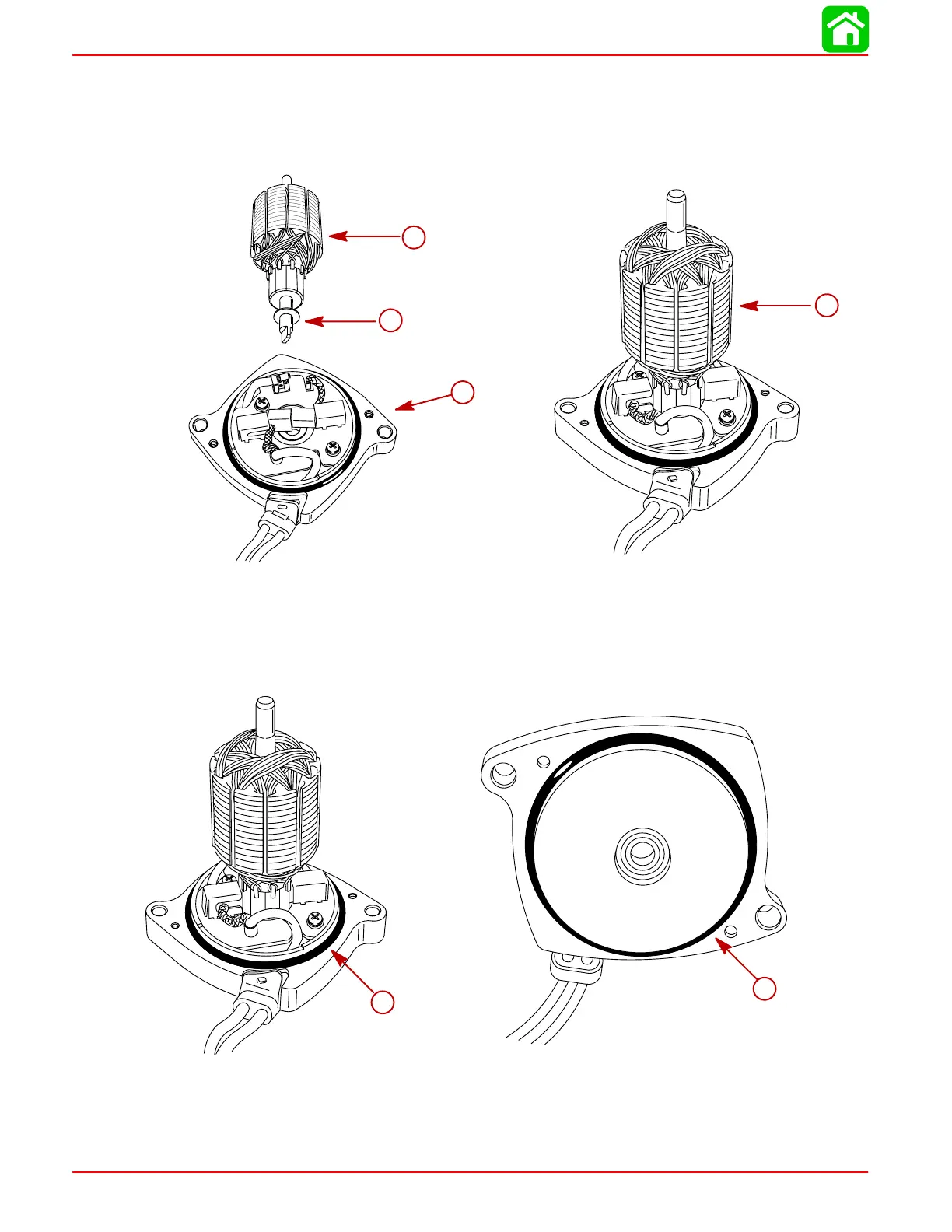

a-Armature
b-Shim
c-End Cap Assembly
d-Armature (Spread brushes to install armature into end cap)
2. Install O-rings in end cap.
53784
a
53783
a
a
a
a-O-rings
