CLAMP/SWIVEL BRACKETS & DRIVESHAFT HOUSING
90-883728 JULY 2001 Page 5A-11

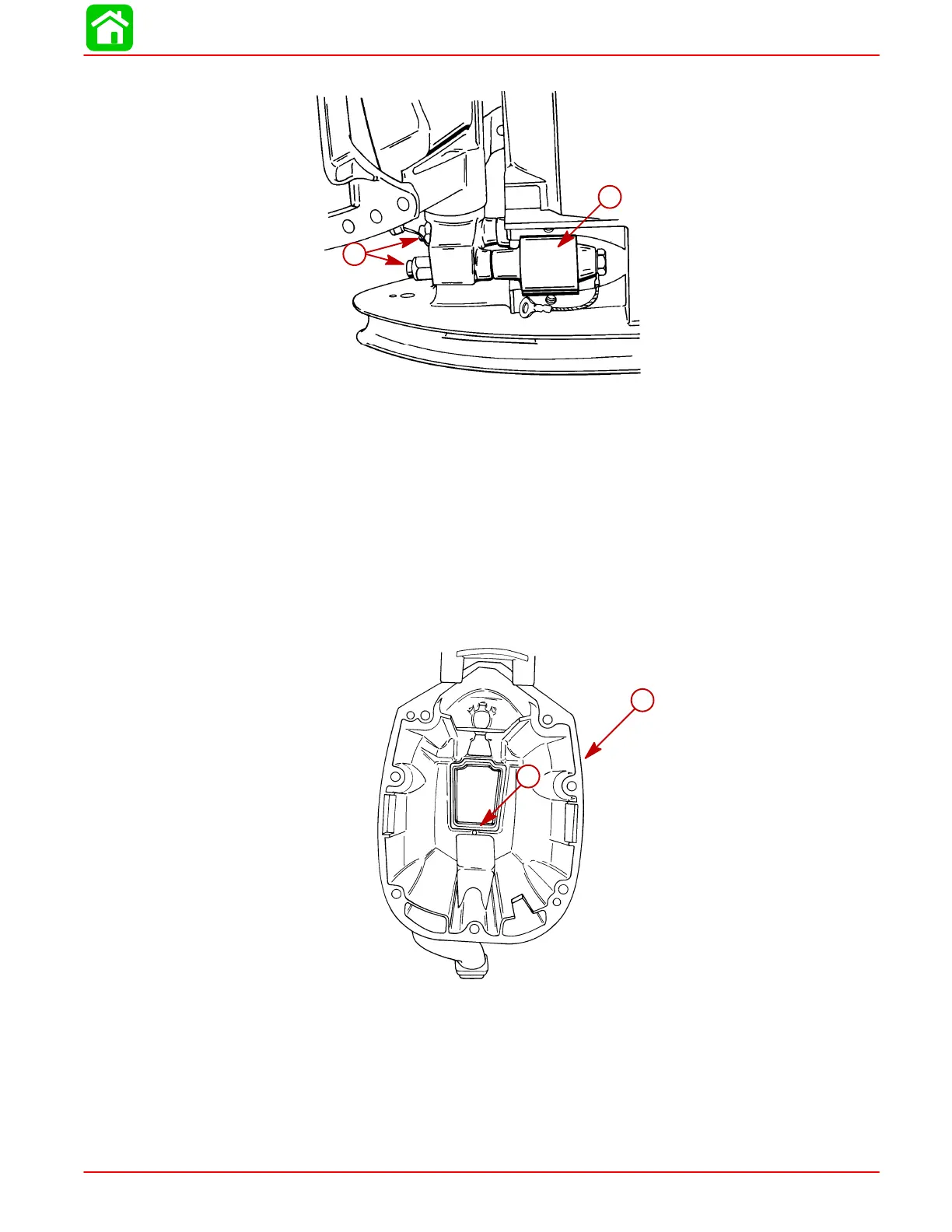

9. Remove lower mount nuts.
b
a
51855
a
b
a-Lower Mount Nuts
b-Lower Mount (1 each side)
10. Remove driveshaft housing from swivel bracket by pulling alternately from top to bot-
tom on housing.
11. Remove upper and lower mounts by lifting them out of driveshaft housing.
Reassembly and Installation
1. Apply a thin coat of 2-4-C with Teflon Marine Lubricant onto inside portion of exhaust
tube seal.
2. Install exhaust tube seal into driveshaft housing with tapered side of seal facing up.
b
a
51856
a
b
a-Exhaust Tube Seal
b-Driveshaft Housing
