WIRING DIAGRAMS
Page 2D-14 90-883728 JULY 2001

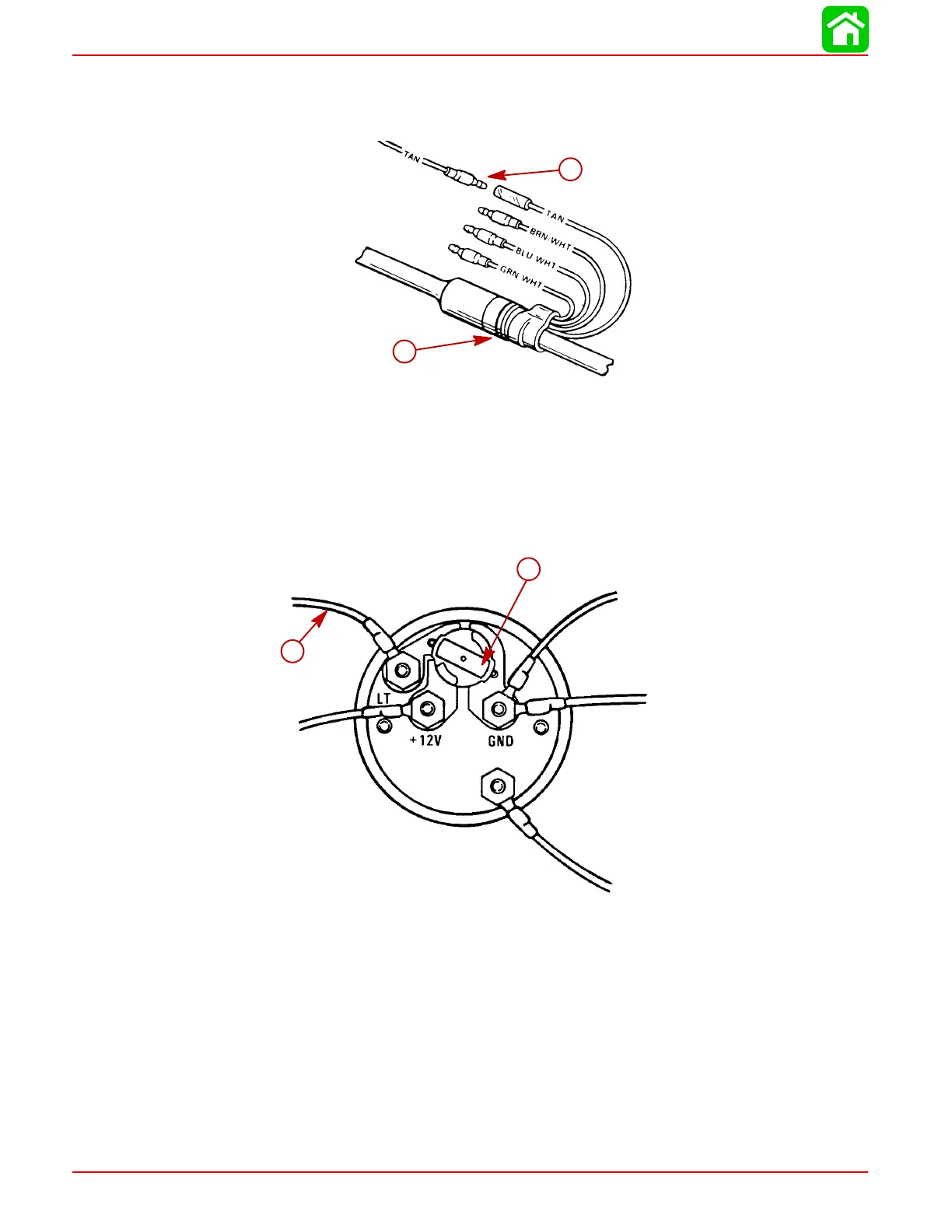

Route TAN lead on starboard side of engine to engine/remote control harness. Connect
as shown.
IMPORTANT: Tape back and isolate any unused wiring harness leads.
28086
a
b
a-Lead from Temperature Sender
b-Engine/Remote Control Harness
Oil Level Gauge Wiring
LIGHT BULB POSITION A
Use this position when using a separate light switch for instrument lighting.
51109
a
b
a-+12 Volt Light Switch Wire
b-Position Light Bulb to the Switched Position
