Mercury 200 EFI

FUEL INJECTION
Page 3B-48 90-883728 JULY 2001
Air Temperature Sensor Removal
Disconnect sensor harness and unscrew sensor.
58898
a
b

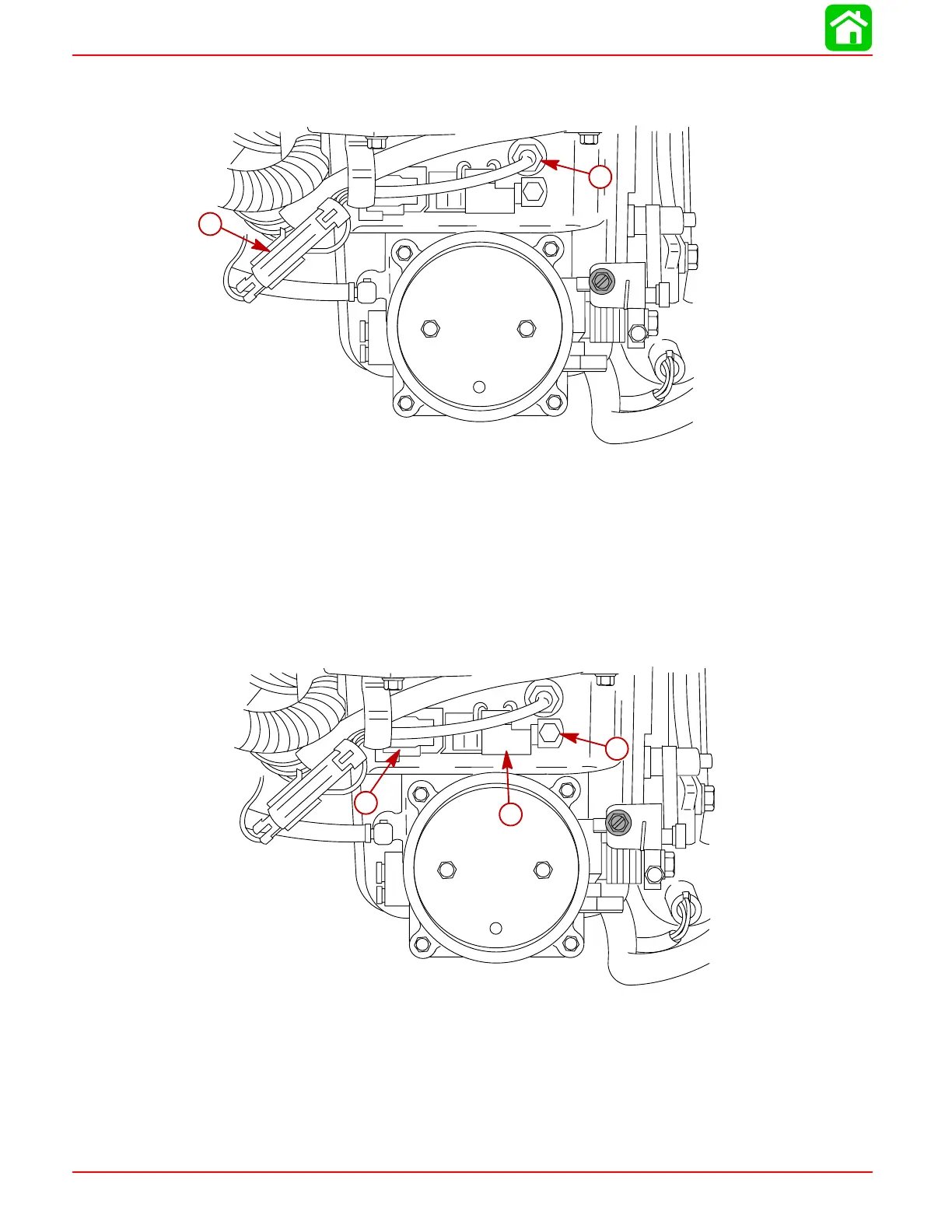

a-Temperature Sensor Harness b-Air Temperature Sensor
Air Temperature Sensor Installation
1. Carefully thread sensor into air plenum. Torque sensor to 14 lb. in. (1.6 Nm).
2. Reconnect sensor harness.
Manifold Absolute Pressure (MAP) Sensor Removal
1. Disconnect MAP sensor harness connector.
2. Remove sensor retaining screw.
58898
b
a
c
a-MAP Harness Connector
b-Retaining Screw
c-MAP Sensor
Manifold Absolute Pressure (MAP) Sensor Installation
1. Secure MAP sensor with screw. Torque screw to 80 lb. in. (9.0 Nm).
2. Reconnect sensor harness.
