POWER TRIM
90-883728 JULY 2001 Page 5B-39

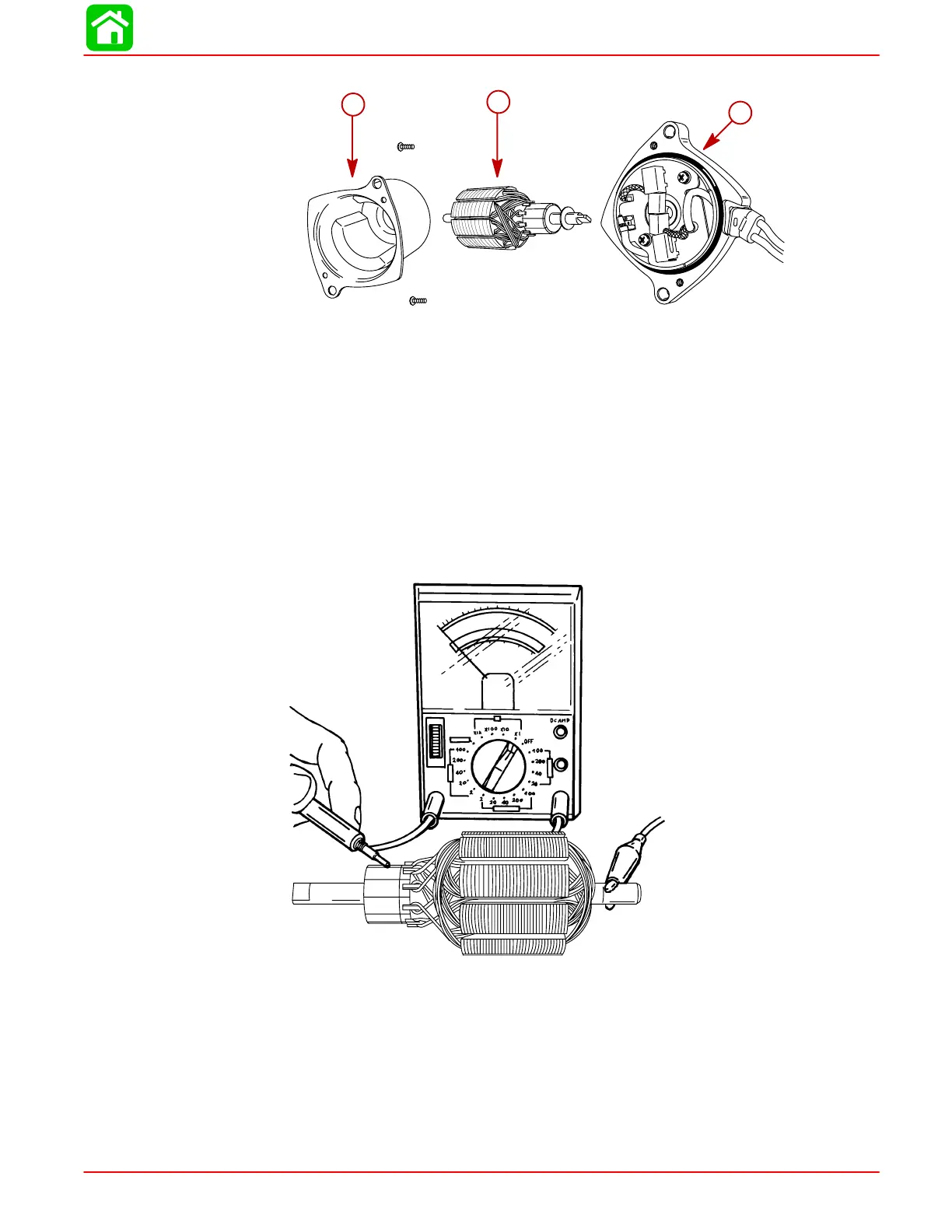

2. Remove field housing and armature from end frame. Use care not to drop armature.
53779
ab
c
a
b
c
a-Field Housing
b-Armature
c-End Frame
Armature Tests
TEST FOR SHORTS
Check armature on a Growler per the Growler manufacturer’s instructions. Replace ar-
mature if a short is indicated.
TEST FOR GROUND
1. Use an Ohmmeter (Rx1 scale). Connect one lead on armature shaft and other lead
on commutator. If continuity is indicated, armature is grounded. Replace armature.
53786
