FUEL PUMP
90-883728 JULY 2001 Page 3A-9

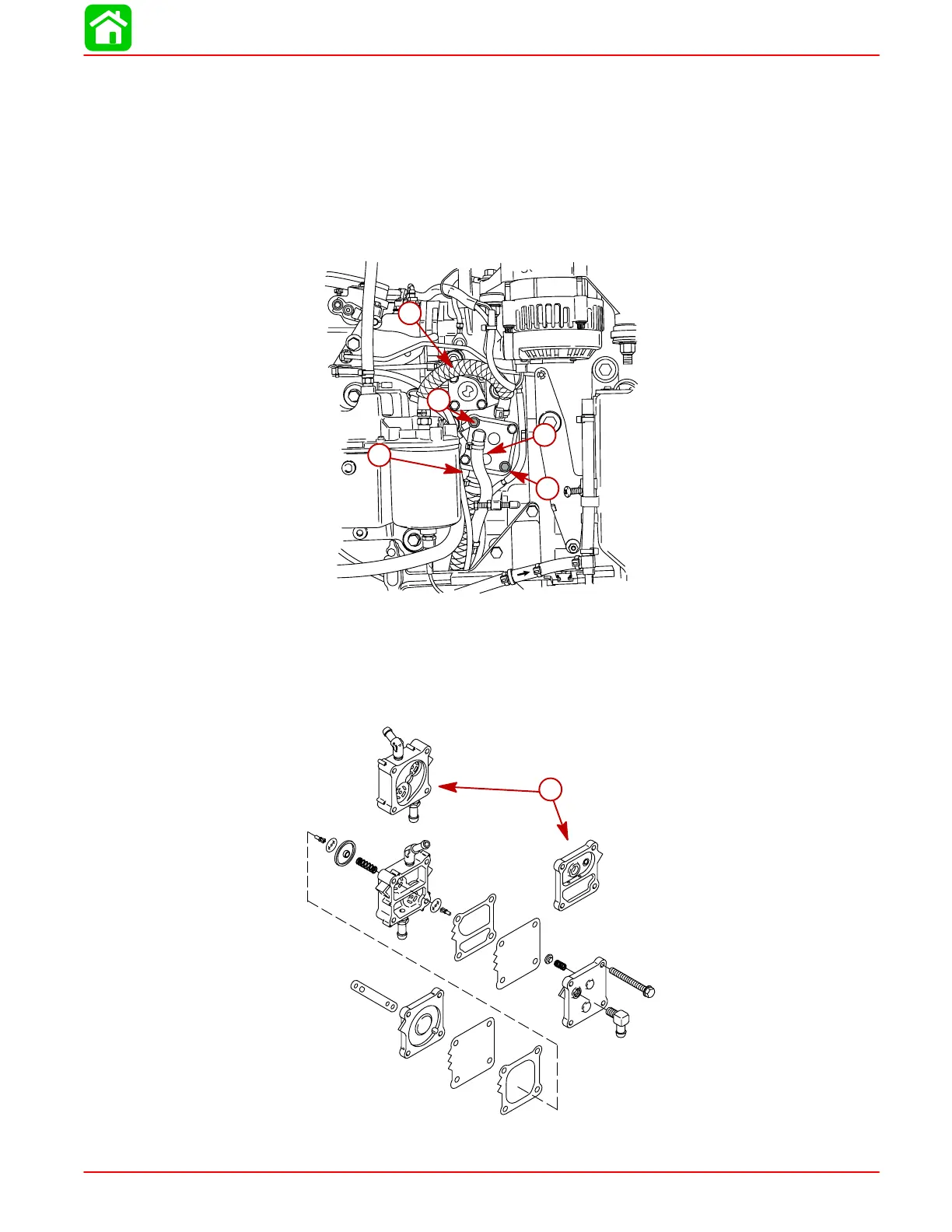

Fuel Pump Removal/Disassembly
IMPORTANT: Fuel pump diaphragm and gaskets should not be re-used once fuel
pump is disassembled.
1. Disconnect fuel hoses from fuel pump.
2. Disconnect pulse hose.
3. Remove two mounting screws.
4. Remove fuel pump from engine.
58799
a
b
c
d
d
a-Fuel Inlet
b-Fuel hose from fuel pump to Fuel/Water Separator
c-Pulse hose
d-Mounting screws
5. Disassemble fuel pump.
58876
a
a-Reverse View of Pump Body
