FUEL INJECTION
Page 3B-58 90-883728 JULY 2001

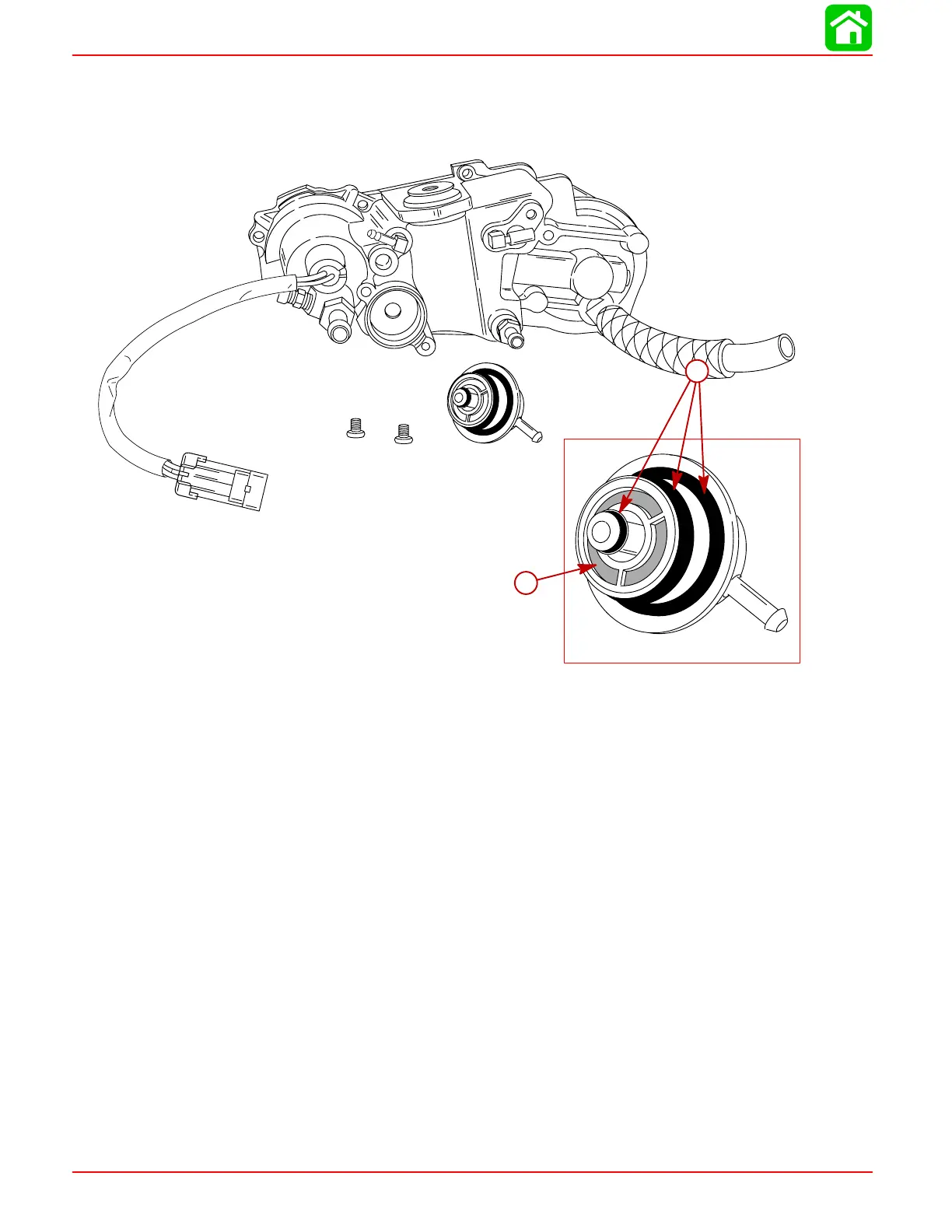

Fuel Pressure Regulator Disassembly
1. Inspect O-rings for cuts and abraisions. Replace as required.
2. Inspect fuel filter for debris. Clean with solvent as required.
58789
a
b
a-O-Rings
b-Filter
Fuel Pressure Regulator Reassembly
1. Reinstall fuel regulator into vapor separator.
2. Secure regulator with 2 screws. Drive screws tight.
3. Reconnect regulator vent hose.
To Next Page
