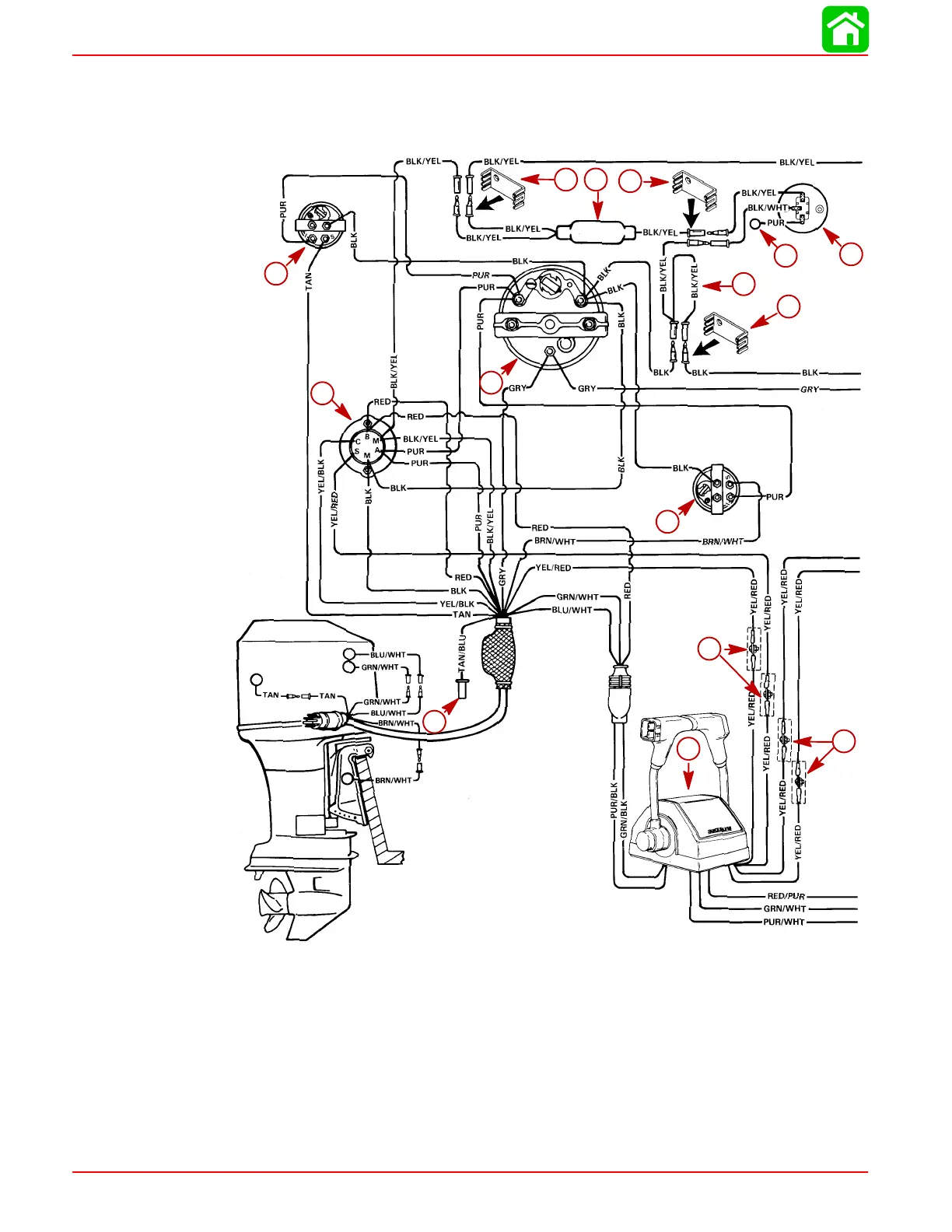

WIRING DIAGRAMS
Page 2D-10 90-883728 JULY 2001
Instrument/Lanyard Stop Switch Wiring Diagram (Dual
Outboard)
BLK=BLACK
BLU=BLUE
BRN=BROWN
GRN=GREEN
GRY=GRAY
PUR=PURPLE
RED=RED
TAN=TAN
WHT=WHITE
YEL=YELLOW
52205
g
a
e
d
kd
b
c
l
d
f
n
n
h
o
BATT
GND
SENDER
PORT INSTALLATION
a
g
d k
d
c
b
l
d
e
f
n
n
h
o
a-Ignition/Choke Switch
b-Lanyard Stop Switch
c-Lead not used on Outboard Installations
d-Retainer
e-Tachometer
f-Trim Indicator Gauge
g-Temperature Gauge
h-Remote Control
